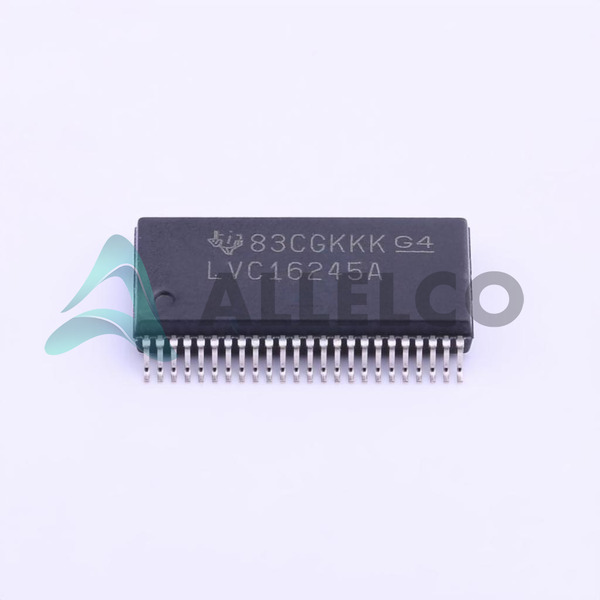

SN74LVC16245ADLR - Texas Instruments

Manufacturer Part Number

SN74LVC16245ADLR

Manufacturer

Texas Instruments

Introduction

High-speed 16-bit transceiver with 3-state outputs

Product Features and Performance

Non-inverting transceiver

Dual 8-bit configuration

3-state outputs for bus-oriented applications

Balanced output drive for improved signal integrity

Product Advantages

Low voltage operation range

Robust Electrostatic Discharge (ESD) protection

Compatible with TTL Levels

Support for mixed-mode signal operation

Key Technical Parameters

16-bit (2 x 8-bit elements)

24mA output drive at 5V

65V to 3.6V supply voltage range

-40°C to 125°C operating temperature range

Quality and Safety Features

Advanced oxide-isolated, high-speed CMOS technology

Overvoltage tolerant inputs and outputs

Latch-up performance exceeds 250mA per JESD 78, Class II

Compatibility

5V tolerant inputs

Interface with 5V logic signals

Application Areas

Bus transceiver in telecom and datacom systems

Microprocessor or microcontroller interfacing

Data buffering for high-speed buses or bus matching

Product Lifecycle

Active product status

Not reported as nearing discontinuation

Upgrades or replacements typically available

Several Key Reasons to Choose This Product

Low power consumption suitable for battery-operated equipment

Wide operating temperature range suitable for industrial applications

High drive ability for heavy loads

Interoperability with both 3.3V and 5V systems

Robust performance in harsh electrical environments

Available in Tape & Reel packaging for automated assembly processes

Compliance with RoHS requirements

Manufactured by industry leader Texas Instruments

Support for future-proof designs with guaranteed product lifecycle
