Manufacturer Part Number

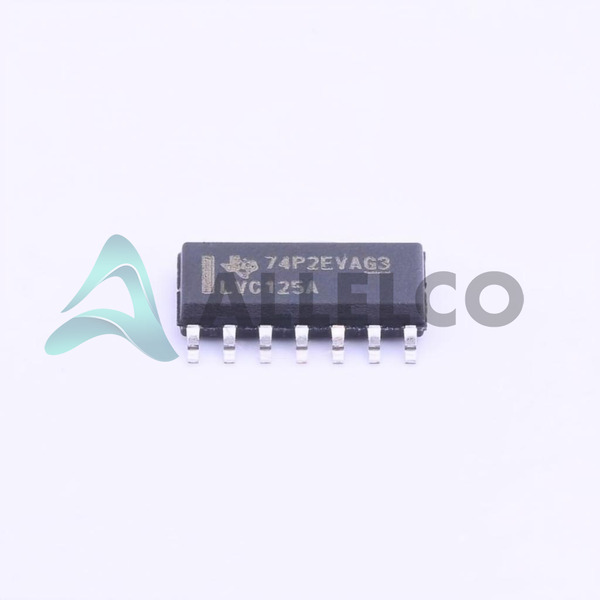

SN74LVC125ADR
Manufacturer
Texas Instruments
Introduction
The SN74LVC125ADR is a quad buffer and line driver designed for 1.65V to 3.6V VCC operation.
Product Features and Performance
Four non-inverting buffers
3-state outputs for bus-compatible interface
High-drive outputs (-24mA/24mA)
Operates from 1.65V to 3.6V
High impedance when VCC = 0V
Latch-up performance meets 100 mA per JESD 78, Class II
Product Advantages
High-speed signal processing due to low on-state resistance
Lower power consumption and broader power supply range (1.65V to 3.6V)
Safe for high-speed interfaces with 3-state outputs
Reduced noise footprint with high-impedance off mode
Key Technical Parameters
Logic Type: Buffer, Non-Inverting
Number of Elements: 4
Current Output High, Low: 24mA, 24mA
Voltage Supply: 1.65V ~ 3.6V
Operating Temperature: -40°C ~ 125°C (TA)
Quality and Safety Features
ESD protection exceeds JESD 22
Supports latch-up performance of 100 mA per JESD 78, Class II
Compatibility
Compatible with 5V tolerant inputs
Interface friendly with mixed-voltage system environment
Application Areas
Data communication
Signal buffering
Driving bus lines
Peripheral drive in computing
IoT devices
Product Lifecycle
Status: Active
Currently not nearing discontinuation with continued manufacturer support and availability of replacements or upgrades.
Several Key Reasons to Choose This Product
Wide operating voltage range suitable for various applications
High current drive capability for driving LEDs or other displays
Low power consumption enhances system efficiency
3-state outputs facilitate bus connectivity
Robust against latch-up, enhancing reliability in complex circuits
Texas Instruments' quality and support ensure reliability and longevity in applications
