Manufacturer Part Number
SN74LV04APWR
Manufacturer
Texas Instruments
Introduction

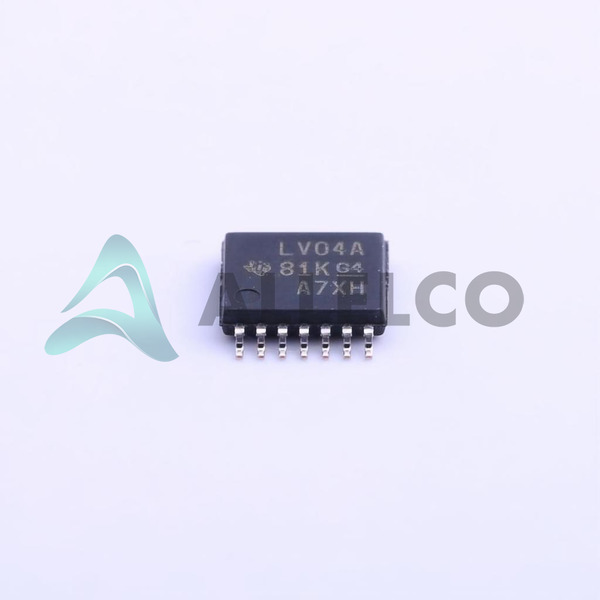

The SN74LV04APWR is a hex inverter logic gate from Texas Instruments’ 74LV series.
Product Features and Performance
Logic Type Inverter with six independent circuits
Single Input per circuit
Low quiescent current of 20 µA maximum
Capable of driving 12mA at both high and low outputs (12mA, 12mA)
Voltage supply range from 2V to 5.5V
Input Logic Level Low at 0.5V
Input Logic Level High at 1.5V
Fast propagation delay with a maximum of 7.5ns at 5V, 50pF
Designed for operating temperatures from -40°C to 85°C
Surface mount 14-TSSOP package
Product Advantages
Low voltage operation suitable for battery-powered applications
Low power consumption enhances energy efficiency
High-drive capability suits various loads
Compatible with LVCMOS, LVTTL, and LVDS levels for input signaling
Tape and Reel packaging for automated assembly processes
Key Technical Parameters
Current Quiescent Max 20 µA
Current Output High, Low 12mA, 12mA
Max Propagation Delay @ V, Max CL 7.5ns @ 5V, 50pF
Quality and Safety Features
Designed and tested for operation in extreme temperatures ranging from -40°C to 85°C
Compatibility
Supports various logic families and multiple power supply configurations
Application Areas
Widely applicable in consumer electronics, telecommunications, computing equipment, and peripheral devices
Product Lifecycle
Active product status with no current indication of discontinuation, ensuring long-term availability
Several Key Reasons to Choose This Product
High noise immunity with low input threshold levels
Ability to interface with a wide range of other digital components and systems
Proven Texas Instruments quality and reliability
Readily available for bulk purchase in Tape & Reel packaging
Versatile operation across a wide voltage range, making it flexible for use in multiple designs
