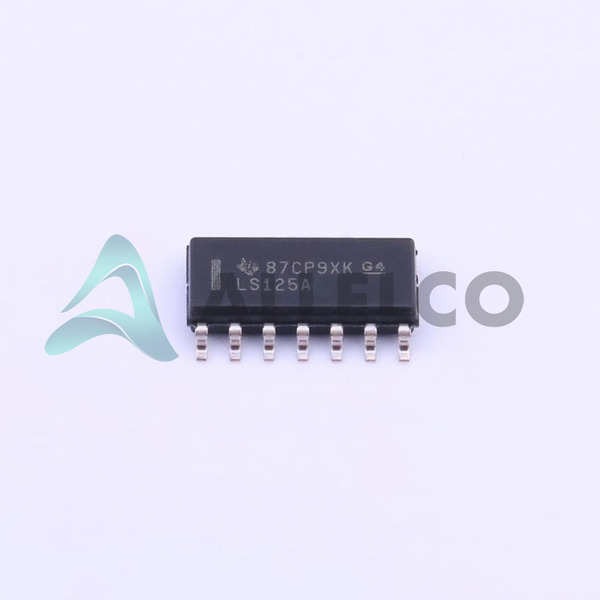

SN74LS125ADR - Texas Instruments

Manufacturer Part Number

SN74LS125ADR

Manufacturer

Texas Instruments

Introduction

SN74LS125ADR is a quadruple bus buffer gate featuring 3-state outputs.

Product Features and Performance

Non-Inverting Buffers

Four Independent Buffer Gates

Individual 3-State Control for Each Output

Designed for 2-V to 5.5-V VCC Operation

Product Advantages

Reduces Fan-out Issues

Prevents Signal Conflict with 3-State Outputs

Ideal for Driving Bus Lines or Buffer Memory Address Registers

Increased Flexibility with 4 Independent Channels

Key Technical Parameters

Logic Type: Buffer, Non-Inverting

Number of Elements: 4

Number of Bits per Element: 1

Current Output High, Low: 2.6mA, 24mA

Voltage Supply: 4.75V ~ 5.25V

Operating Temperature Range: 0°C ~ 70°C

Quality and Safety Features

Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latch-Up Test

RoHS Compliant

Industry-Standard Certifications

Compatibility

Suitable for Use in TTL and Mixed TTL/CMOS Environments

Compatible with Series 74LS Logic Families

Application Areas

Data Transmission

Memory Buffering

Digital Signal Processing

Industrial Controls

Consumer Electronics

Product Lifecycle

Product Status: Active

Standard Lifecycle with No Known Discontinuation

Future Product Enhancements and Upgrades Likely

Several Key Reasons to Choose This Product

Reliable Texas Instruments Quality and Support

Low Power Consumption for Energy Efficiency

Enhanced Signal Integrity with 3-State Outputs

Versatile Operating Voltage and Temperature Range

Available in Bulk and Tape & Reel Packaging Options for Scalable Manufacturing
