SN74ALS374ADWR - Texas Instruments

Manufacturer Part Number

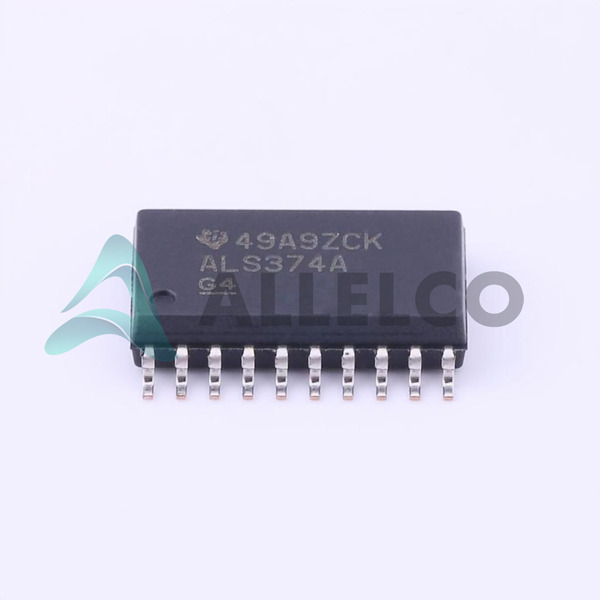

SN74ALS374ADWR

Manufacturer

Texas Instruments

Introduction

The SN74ALS374ADWR is a high-performance, D-Type flip-flop logic device from Texas Instruments' 74ALS series.

Product Features and Performance

D-Type Flip Flop configuration

Tri-State, Non-Inverted output type

Comprises 1 element with 8 bits per element

Supports clock frequencies up to 35MHz

Features a maximum propagation delay of 16ns at 5V, 50pF

Positive edge trigger type for precise control

Designed to operate with a supply voltage between 4.5V and 5.5V

Consumes 19 mA in a quiescent state

Product Advantages

High-speed operation suitable for various digital applications

Tri-State output for easier connection to bus-oriented systems

Low quiescent current improves the energy efficiency of the device

Key Technical Parameters

Clock Frequency: 35 MHz

Max Propagation Delay: 16ns @ 5V, 50pF

Output Current: High 2.6mA, Low 24mA

Voltage Supply: 4.5V ~ 5.5V

Operating Temperature: 0°C ~ 70°C

Quality and Safety Features

Manufactured by Texas Instruments, ensuring high reliability and performance

Complies with the industry standards for logic devices

Compatibility

Surface Mount technology for compatibility with modern PCB designs

Housed in a 20-SOIC (0.295", 7.50mm width) package for easy integration

Application Areas

Widely used in digital systems for data storage, transfer, and communication

Suitable for telecommunications, computing, and high-speed signal processing

Product Lifecycle

Currently marked as Active, indicating ongoing production and support

No immediate discontinuation announced, ensuring availability for future designs

Several Key Reasons to Choose This Product

High-speed performance ideal for advanced digital applications

Low power consumption enhances system efficiency

Texas Instruments' reputation for quality and reliability

Flexible supply voltage and wide operating temperature range

Tri-State output facilitates bus connectivity
