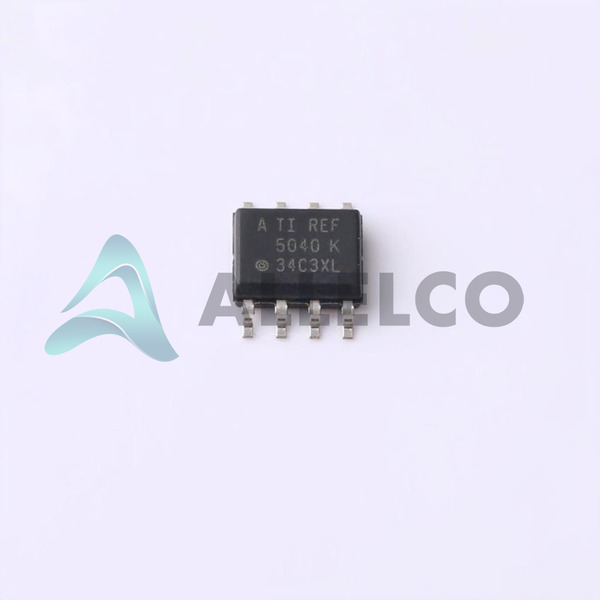

Manufacturer Part Number
REF5040AIDR
Manufacturer
Texas Instruments
Introduction
Precision voltage reference designed for power management applications
Product Features and Performance
High precision fixed 4.096V output
Low supply current of 1.2mA
Tight tolerance of ±0.1%
Low temperature coefficient of 8ppm/°C
Low noise performance of 12µVpp/V from 0.1Hz to 10Hz
Product Advantages
Accurate voltage reference for ADC/DAC
Robust operation from -40°C to 125°C
Suitable for battery-powered and portable applications
Stable output with low input voltage range
Key Technical Parameters
Output Voltage: 4.096V
Output Current: 10mA
Input Voltage Range: 4.296V ~ 18V
Operating Temperature Range: -40°C ~ 125°C
Mounting Type: Surface Mount
Package: 8-SOIC
Quality and Safety Features
Industrial temperature grade
Safety standards compliance for electronic devices
Compatibility
Compatible with various converters and regulators
Interoperable with 8-SOIC footprint standard
Application Areas
Precision power supplies
Data acquisition systems
Test and measurement equipment
Portable and battery-powered devices
Product Lifecycle
Active status
Not nearing discontinuation
Replacement parts or upgrades available
Several Key Reasons to Choose This Product
Precision voltage for critical applications
Wide operational temperature range for harsh environments
Low power consumption ideal for portable devices
Proven reliability from Texas Instruments
Ease of integration with standard package and low part count
