Manufacturer Part Number

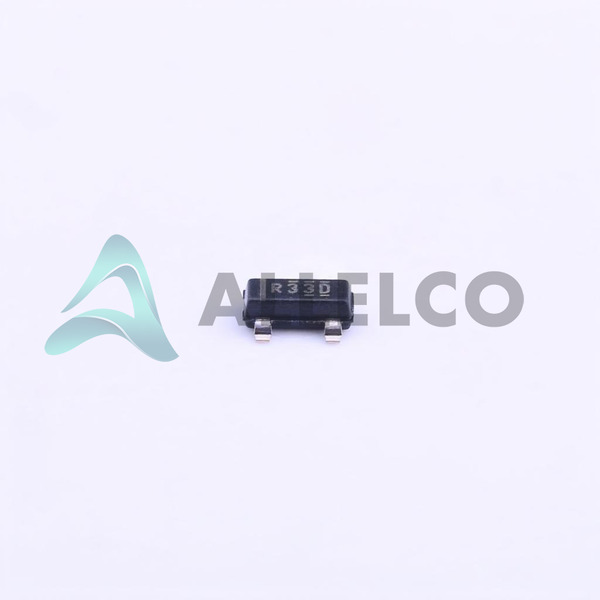

REF3325AIDBZT
Manufacturer
Texas Instruments
Introduction
Voltage Reference IC for Precision Power Management
Product Features and Performance
Series Reference Type
Fixed Output Voltage at 2.5V
Maximum Output Current of 5 mA
Low Tolerance of ±0.15%
Temperature Coefficient at 30 ppm/°C
Low Noise 70 µVp-p at 0.1 Hz to 10 Hz
Operating Voltage Range 2.7V ~ 5.5V
Ultra-low Supply Current of 8.5 µA
Stable Over -40°C ~ 125°C Temperature Range
Product Advantages
High Accuracy Voltage Reference
Low Power Consumption
Excellent Temperature Stability
Low Output Noise
Robust Thermal Performance
Key Technical Parameters
Fixed 2.5V Output Voltage
5 mA Current Output
±0.15% Tolerance
30 ppm/°C Temperature Coefficient
7V ~ 5.5V Input Voltage Range
5 µA Supply Current
Quality and Safety Features
Robust Operating Temperature Range
High Precision and Stability
Compatibility
Compatible with Surface Mount Technology
Application Areas
Power Supply Control
Data Conversion Systems
Measurement and Instrumentation
Medical and Healthcare Electronics
Product Lifecycle
Active Product Status
Not Nearing Discontinuation
Availability of Replacements or Upgrades Not Specified
Several Key Reasons to Choose This Product
Precision Voltage Reference Ensures Accurate Power Management
Low Power Consumption Ideal for Energy-Sensitive Applications
High Stability Across Wide Temperature Range Suitable for Industrial Environments
Low Noise Output Benefits Sensitive Measurement and Instrumentation Tasks
Compact SOT-23-3 Packaging for Space-Constrained Applications
