Manufacturer Part Number

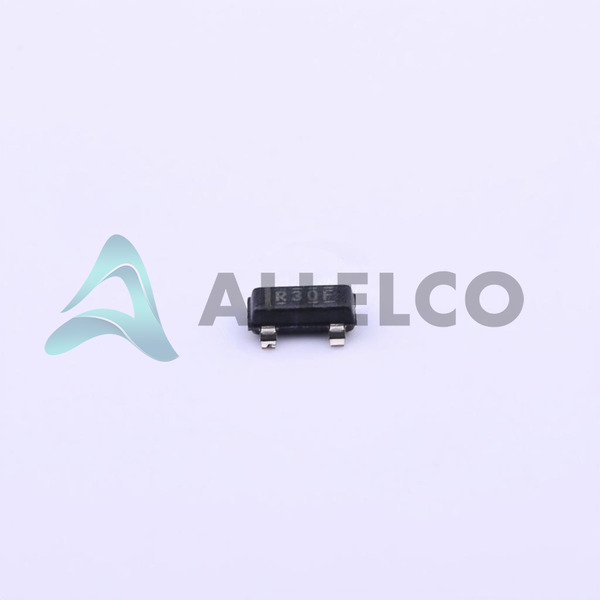

REF3030AIDBZR
Manufacturer
Texas Instruments
Introduction
Low-dropout, precision voltage reference
Product Features and Performance
Fixed 3V output voltage
25 mA current output capability
High accuracy with ±0.2% tolerance
Stable over temperature with 75ppm/°C temperature coefficient
Low noise, with 33µVp-p from 0.1Hz to 10Hz and 94µVrms from 10Hz to 10kHz
Wide input voltage range from 3.05V to 5.5V
Low supply current draw of 50µA
Product Advantages
Highly stable and precise for demanding applications
Energy-efficient for battery-powered devices
Low noise for sensitive circuits
Robust operational temperature range suitable for industrial use
Key Technical Parameters
Voltage - Output (Min/Fixed): 3V
Current - Output: 25 mA
Tolerance: ±0.2%
Temperature Coefficient: 75ppm/°C
Voltage - Input: 3.05V ~ 5.5V
Current - Supply: 50µA
Operating Temperature: -40°C ~ 125°C
Quality and Safety Features
Operational across broad temperature range
Industry-standard safety and quality compliance
Compatibility
Surface Mount compatible
Fits TO-236-3, SC-59, SOT-23-3 Package
Application Areas
Power management in industrial systems
Precision instrumentation
Data acquisition systems
Microcontrollers and digital systems
Automotive electronics
Product Lifecycle
Active status
Ongoing support and production
Several Key Reasons to Choose This Product
High precision voltage reference for critical applications
Low power consumption extends battery life
Temperature stability suitable for fluctuating environments
Low noise performance for signal integrity
Reputable manufacturer with reliable product quality
