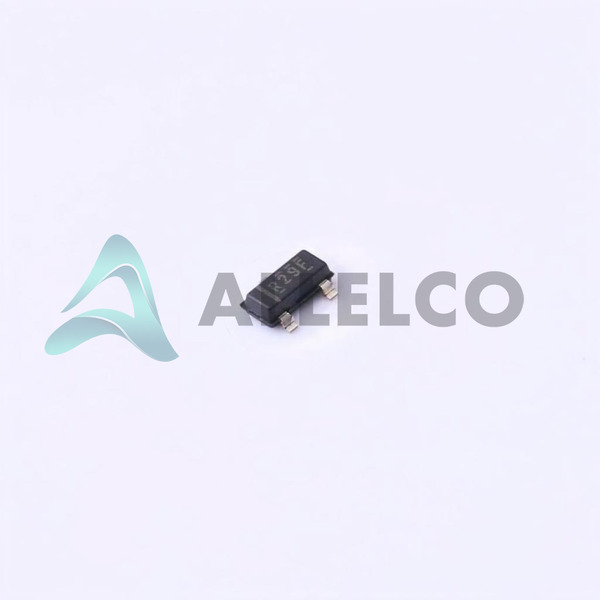

REF2940AIDBZR - Texas Instruments

Manufacturer Part Number

REF2940AIDBZR

Manufacturer

Texas Instruments

Introduction

Low-dropout voltage reference IC for precision power management

Product Features and Performance

Fixed output voltage of 4.096V

Precision series reference

Output current capability of 25 mA

Stable temperature coefficient of 100ppm/°C

Low noise performance of 45µVp-p (0.1Hz to 10Hz) and 128µVrms (10Hz to 10kHz)

Wide input voltage range from 4.146V to 5.5V

Product Advantages

High accuracy with a tolerance of ±2%

Efficient operation with low supply current of 59µA

Suitable for a wide range of temperatures from -40°C to 125°C

Surface mount package supports compact design

Key Technical Parameters

Reference Type: Series

Voltage - Output (Min/Fixed): 4.096V

Current - Output: 25 mA

Tolerance: ±2%

Temperature Coefficient: 100ppm/°C

Voltage - Input: 4.146V ~ 5.5V

Current - Supply: 59µA

Quality and Safety Features

Robust operating temperature range ensuring reliability across various conditions

Industry-standard quality assurance and safety standards

Compatibility

Compatible with surface mount technology

Package / Case: TO-236-3, SC-59, SOT-23-3

Application Areas

Precision power supplies

Data acquisition systems

Portable instrumentation

Consumer electronics

Industrial controls

Product Lifecycle

Active product status

No indication of nearing discontinuation

Availability of replacements or upgrades based on the base product number REF2940

Reasons to Choose This Product

Precision output voltage essential for sensitive electronics

Low operating current ideal for power-sensitive applications

High output current capability for driving larger loads

Wide input voltage range providing flexibility in design

Low noise suitable for precision and low-noise applications

Excellent temperature stability for consistent performance

Compact package size ideal for space-constrained applications

Reliable operation over a broad temperature range increases utility

Produced by renowned manufacturer Texas Instruments, ensuring quality and support
