Manufacturer Part Number

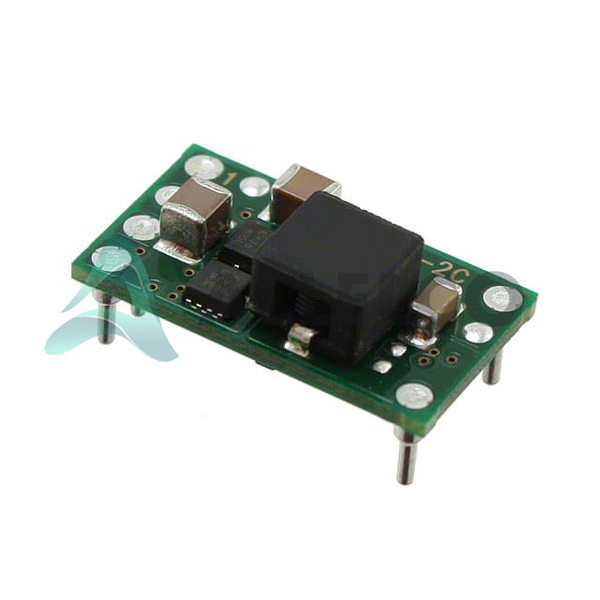

PTH12050LAH
Manufacturer
Texas Instruments
Introduction
The PTH12050LAH is a high-efficiency, non-isolated, point-of-load (PoL) DC/DC converter module from Texas Instruments. It is designed for use in a wide range of commercial and industrial applications.
Product Features and Performance
Output voltage adjustable from 0.8V to 1.8V
Capable of delivering up to 6A of output current
High efficiency of 88%
Wide input voltage range of 10.8V to 13.2V
Wide operating temperature range of -40°C to 85°C
Small size of 0.87" x 0.50" x 0.34"
Through-hole mounting
Product Advantages
High efficiency for low power consumption
Compact and space-saving design
Wide input voltage and temperature ranges for versatility
Adjustable output voltage for flexibility
Key Technical Parameters
Input voltage range: 10.8V to 13.2V
Output voltage range: 0.8V to 1.8V
Maximum output current: 6A
Efficiency: 88%
Operating temperature range: -40°C to 85°C
Package: 6-DIP Module
Quality and Safety Features
RoHS3 compliant
Designed for commercial and industrial applications
Compatibility
Suitable for use in a wide range of Information Technology Equipment (ITE) applications
Application Areas
Embedded systems
Point-of-load power supplies
Industrial equipment
Commercial electronics
Product Lifecycle
The PTH12050LAH is an active product and is not nearing discontinuation.
Replacement or upgrade options may be available from Texas Instruments.
Key Reasons to Choose This Product
High efficiency for low power consumption
Compact and space-saving design
Wide input voltage and temperature ranges for versatility
Adjustable output voltage for flexibility
Suitable for a variety of commercial and industrial applications
Backed by the reliability of Texas Instruments
