Manufacturer Part Number

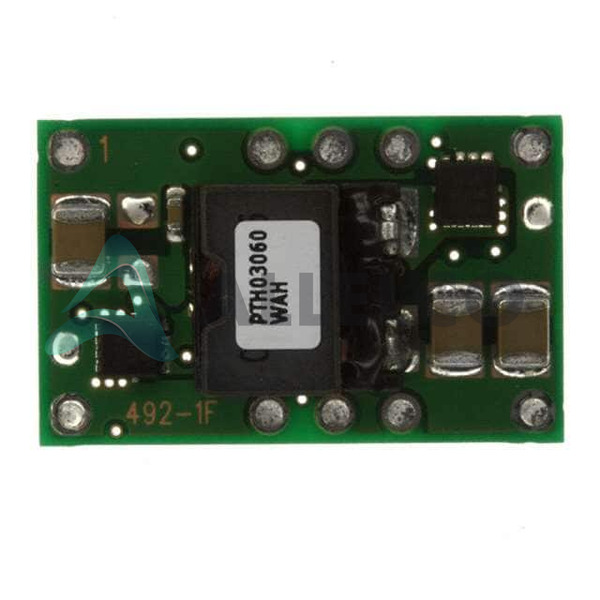

PTH03060WAST
Manufacturer
Texas Instruments
Introduction
High-efficiency, non-isolated point-of-load (PoL) DC/DC converter module
Product Features and Performance
Compact size: 0.99" L x 0.62" W x 0.38" H (25.3mm x 15.8mm x 9.6mm)
Wide input voltage range: 2.95V to 3.65V
Adjustable output voltage: 0.8V to 2.5V
High output current: up to 10A
High efficiency: up to 93%
Remote on/off, overcurrent protection (OCP), and undervoltage lockout (UVLO) features
Product Advantages
Compact size for space-constrained applications
Wide input voltage range for flexibility
Adjustable output voltage for customization
High output current and efficiency for power-hungry loads
Robust protection features for reliable operation
Key Technical Parameters
Input voltage range: 2.95V to 3.65V
Output voltage range: 0.8V to 2.5V
Maximum output current: 10A
Efficiency: up to 93%
Operating temperature range: -40°C to 85°C
Quality and Safety Features
RoHS3 compliant
Protection features: remote on/off, OCP, UVLO
Compatibility
Suitable for use in ITE (commercial) applications
Application Areas
Ideal for powering CPUs, FPGAs, ASICs, and other high-performance digital loads in ITE (commercial) applications
Product Lifecycle
This product is an active, in-production part from Texas Instruments and is not nearing discontinuation.
Several Key Reasons to Choose This Product
Compact size and high power density for space-constrained designs
Wide input voltage range and adjustable output voltage for flexibility
High output current and efficiency for powering demanding loads
Robust protection features for reliable operation
Compliance with RoHS3 standards for environmental sustainability
