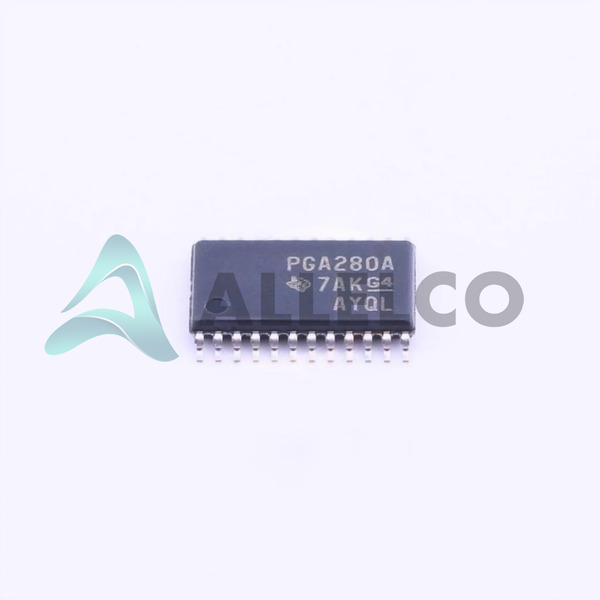

PGA280AIPW - Texas Instruments

Manufacturer Part Number

PGA280AIPW

Manufacturer

Texas Instruments

Introduction

The PGA280AIPW is a high-performance programmable gain instrumentation amplifier designed for a wide range of industrial and medical applications.

Product Features and Performance

Programmable gain from 1 to 1000

Wide supply voltage range of 10V to 36V

Low input offset voltage of 50μV

Low input bias current of 800pA

Gain bandwidth product of 6MHz

Slew rate of 2V/μs

Supports 24-TSSOP package

Product Advantages

Excellent accuracy and stability

Wide programmable gain range

Low power consumption

Compact 24-TSSOP package

Suitable for industrial and medical applications

Key Technical Parameters

Gain Bandwidth Product: 6 MHz

Voltage Supply Span (Min): 10 V

Current Supply: 2.4mA

Slew Rate: 2V/s

Voltage Input Offset: 50 μV

Amplifier Type: Programmable Gain

Voltage Supply Span (Max): 36 V

Current Output / Channel: 15 mA

Current Input Bias: 800 pA

Quality and Safety Features

RoHS3 compliant

Suitable for industrial and medical applications

Compatibility

Surface mount 24-TSSOP package

Application Areas

Industrial instrumentation

Medical equipment

Process control

Data acquisition systems

Product Lifecycle

Current product, no discontinuation planned

Availability of replacements and upgrades as needed

Key Reasons to Choose This Product

High accuracy and stability

Wide programmable gain range

Low power consumption

Compact 24-TSSOP package

Suitable for industrial and medical applications

RoHS3 compliant

Proven reliability and performance
