Manufacturer Part Number

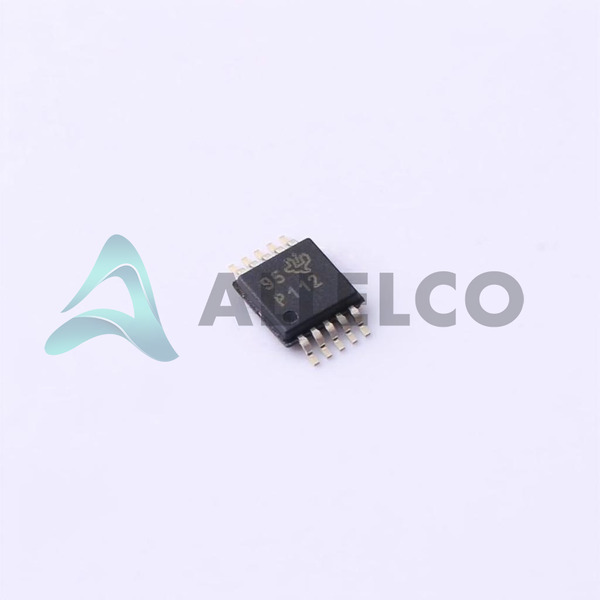

PGA112AIDGST
Manufacturer
Texas Instruments
Introduction
Programmable Gain Amplifier (PGA)
Suitable for high-performance instrumentation and data acquisition applications
Product Features and Performance
Rail-to-rail output
Low input offset voltage of 75 μV
Low input bias current of 1.5 nA
High bandwidth of 10 MHz
High slew rate of 8 V/μs
Programmable gain from 1 to 8 in steps of 2
Wide supply voltage range from 2.2 V to 5.5 V
Low supply current of 330 μA
Operating temperature range of -40°C to 125°C
Product Advantages
Excellent performance for instrumentation and data acquisition applications
Flexibility in gain selection to optimize performance
Low power consumption
Wide operating temperature range
Key Technical Parameters
Manufacturer Part Number: PGA112AIDGST
Package: 10-VSSOP
Output Type: Rail-to-Rail
Mounting Type: Surface Mount
Voltage Supply Span (Min/Max): 2.2 V / 5.5 V
Current Supply: 330 μA
Slew Rate: 8 V/μs
Voltage Input Offset: 75 μV
Amplifier Type: Programmable Gain
Current Output / Channel: 60 mA
Current Input Bias: 1.5 nA
-3dB Bandwidth: 10 MHz
Quality and Safety Features
RoHS3 compliant
Compatibility
Compatible with a wide range of instrumentation and data acquisition applications
Application Areas
Instrumentation and data acquisition systems
Industrial control and monitoring
Medical equipment
Test and measurement equipment
Product Lifecycle
Currently in active production
No plans for discontinuation at this time
Replacement or upgrade options available if needed
Key Reasons to Choose This Product
Excellent performance characteristics, including low offset voltage, low bias current, high bandwidth, and high slew rate
Programmable gain feature for optimizing system performance
Wide operating temperature range and low power consumption
RoHS3 compliance for environmental safety
Proven reliability and compatibility with a wide range of applications
