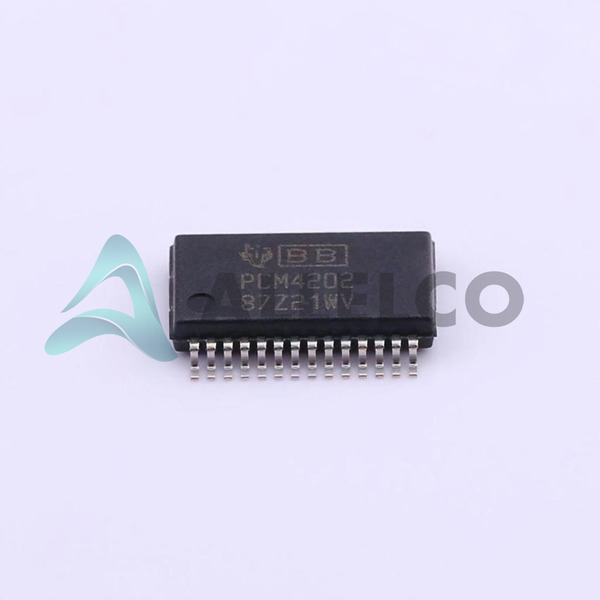

PCM4202DBR - Texas Instruments

Manufacturer Part Number

PCM4202DBR

Manufacturer

Texas Instruments

Introduction

The PCM4202DBR is a specialized ADC designed for audio applications, ensuring high-resolution data conversion.

Product Features and Performance

High-resolution 24-bit ADC

Dual channel audio data conversion

Sampling rate up to 216kHz

Supports DSP and PCM data interfaces

Optimized for low voltage operations ranging from 1.65V to 3.6V, and 5V

Product Advantages

Enhanced audio fidelity and resolution

Robust performance in various temperature conditions (-10°C to 70°C)

Efficient power usage suitable for both analog and digital voltage sources

Key Technical Parameters

Number of Channels: 2

Resolution: 24 bits

Sampling Rate: 216k per second

Voltage Supply: 1.65V ~ 3.6V, 5V

Operating Temperature: -10°C ~ 70°C

Quality and Safety Features

Designed to meet stringent industry standards

Operates reliably within a broad range of supply voltages and temperatures

Compatibility

Compatible interface for DSP and PCM systems

Effects seamless integration into existing audio acquisition setups

Application Areas

High-fidelity audio recording and processing

Broadcasting

Professional and consumer audio systems

Product Lifecycle

Currently active with no present plans for discontinuation

Replacement and upgrade options are available if needed in the future

Several Key Reasons to Choose This Product

Exceptional audio data resolution

Extremely flexible with multiple power supply options

Robust and reliable across a broad range of operating conditions

High compatibility with various data interfaces

Ongoing product support and lifecycle maintenance offered by Texas Instruments
