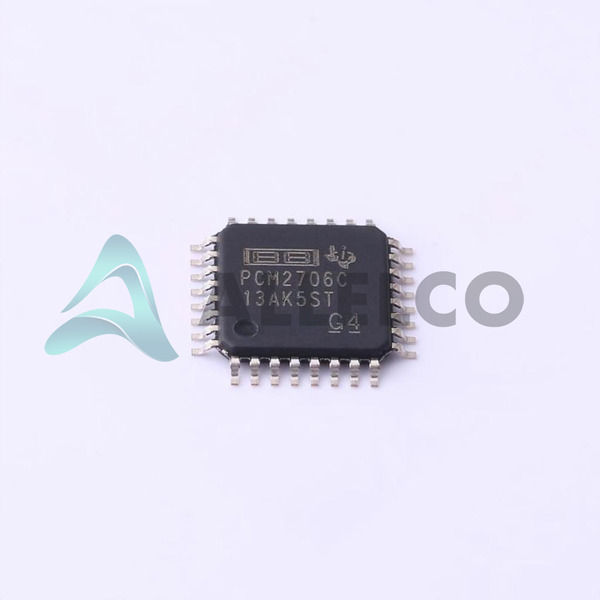

PCM2706CPJTR - Texas Instruments

Manufacturer Part Number

PCM2706CPJTR

Manufacturer

Texas Instruments

Introduction

PCM2706CPJTR is an integrated circuit designed for processing audio signals.

Product Features and Performance

USB 1.1 compliant audio signal processor

Stereo audio DAC with USB interface

Built-in programmable gain amplifier

Supports 32, 44.1, and 48 kHz sampling rates

Integrated S/PDIF output

Bus-powered or self-powered operation

Product Advantages

High-quality audio performance

Ease of integration into audio systems

Low power consumption

Versatile interfacing options with I2C and SPI

Minimal external components required

Key Technical Parameters

Number of Channels: 2

Interface: I2C, SPI

Voltage Supply: 3V to 3.6V

Operating Temperature: -40°C to 125°C

Mounting Type: Surface Mount

Package / Case: 32-TQFP

Supplier Device Package: 32-TQFP (7x7)

Quality and Safety Features

Complies with USB audio device class specification v1.0

Electromagnetic interference (EMI) reduced design

Thermal overload protection

Compatibility

Compatible with USB 1.1 host ports

Interoperable with I2C and SPI protocols

Application Areas

USB headphones

USB desktop speakers

Portable audio docks

Audio interface for computers and multimedia devices

Product Lifecycle

Status: Active

Continuously supported with no current indication of discontinuation

Availability of replacements or upgrades subject to Texas Instruments’ product roadmap

Several Key Reasons to Choose This Product

Texas Instruments' reputation for reliable and robust ICs

Offers a solution for integrating high-quality audio into products with minimal additional components

Long-term availability and support from the manufacturer

Wide operating temperature range making it suitable for diverse environmental conditions

Flexible connectivity through I2C and SPI interfaces, making it suitable for a variety of design needs
