PCM1796DBR - Texas Instruments

Manufacturer Part Number

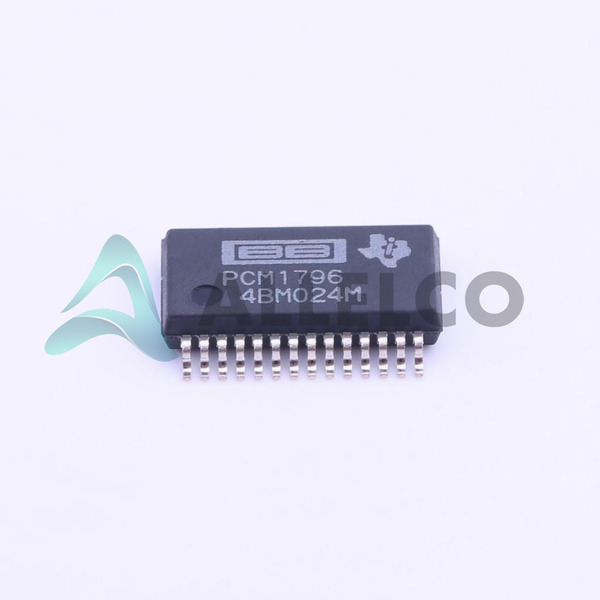

PCM1796DBR

Manufacturer

Texas Instruments

Introduction

The PCM1796DBR is a high-quality audio digital-to-analog converter (DAC) providing superior audio performance and a high degree of flexibility for digital audio systems.

Product Features and Performance

24-bit resolution for high-fidelity audio reproduction

Dual-channel DAC allows for stereo output

Up to 200k sampling rate support for high-resolution audio files

Distortion-free and noise-resistant audio output

Multiple data interfaces including Direct Stream Digital (DSD) and Pulse Code Modulation (PCM)

Flexible voltage supply range accommodating various system designs

Suitable for harsh temperature environments from -25°C to 85°C

Surface mount design for efficient PCB layout

Built-in digital filter with excellent audio characteristics

Product Advantages

Exceptional sound quality with advanced signal processing

Integrates easily into various audio systems with multiple data interface support

Compatible with high-definition audio due to an higher sampling rate

Delivers reliable performance across a wide temperature range

Streamlined for space-saving purposes on printed circuit boards

Key Technical Parameters

Resolution: 24 bits

Number of Channels: 2

Sampling Rate: Up to 200k per second

Data Interface: DSD, PCM

Supply Voltage: 3V to 3.6V or 5V

Operating Temperature: -25°C to 85°C

Quality and Safety Features

Ensures stable and reliable performance even in extended use

Built to Texas Instruments' rigorous quality standards

Compatibility

Interfacing compatibility with various audio formats and systems

Application Areas

Home theater systems

Professional audio systems

Digital mixing consoles

Automotive audio systems

High-end consumer audio devices

Product Lifecycle

Product status is active

Currently not nearing discontinuation with ongoing support

Replacement and upgrade options are available within Texas Instruments' portfolio

Several Key Reasons to Choose This Product

Leading-edge audio performance for an exceptional listening experience

High sampling rates enable the use of high-resolution audio files

Robust design with wide temperature range tolerance for reliability in various environments

Manufactured by Texas Instruments, a reputable company in the industry

Long product lifecycle with ongoing manufacturer support ensures long-term usability
