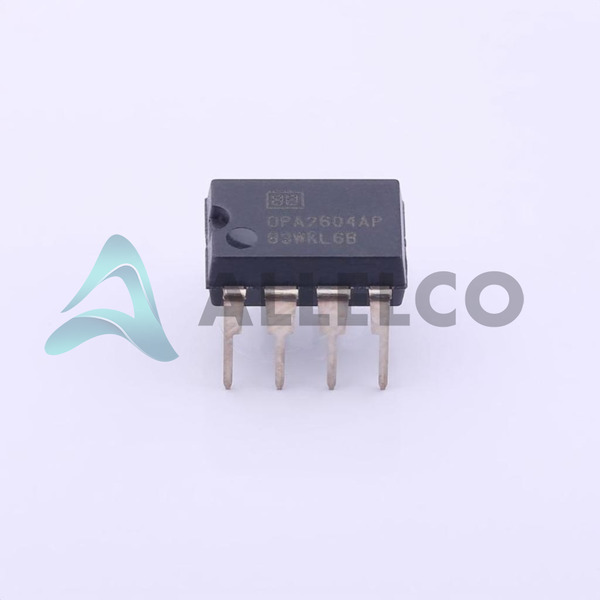

OPA2604AP - Texas Instruments

Manufacturer Part Number
OPA2604AP
Manufacturer
Texas Instruments
Allelco Part Number
32D-OPA2604AP
ECAD Model
Parts Description
IC OPAMP GP 20MHZ 8DIP
Detailed Description
Package
8-DIP (0.300", 7.62mm)
Data sheet
OPA2604AP.pdf
RoHs Status
Lead free / RoHS Compliant
Compare
In stock: 8783

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

OPA2604AP Tech Specifications
Texas Instruments - OPA2604AP technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - OPA2604AP

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply, Single/Dual (±) 9 V ~ 48 V, ±4.5 V ~ 24 V
Voltage - Input Offset 1mV
Supplier Device Package 8-PDIP
Slew Rate 25 V/µs
Series -
Packaging Tube
Package / Case 8-DIP (0.300", 7.62mm)
Output Type -
Other Names 296-43499-5
OPA2604AP-ND
Operating Temperature -25°C ~ 85°C
Product Attribute Attribute Value
Number of Circuits 2
Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant
Gain Bandwidth Product 20MHz
Detailed Description General Purpose Amplifier 2 Circuit 8-PDIP
Current - Supply 10.5mA
Current - Output / Channel 35mA
Current - Input Bias 100pA
Base Part Number OPA2604
Amplifier Type General Purpose

Parts Introduction

Manufacturer Part Number

OPA2604AP

Manufacturer

Texas Instruments

Introduction

Dual Operational Amplifier

High-Performance General-Purpose Amplifier

Product Features and Performance

Gain Bandwidth Product: 20MHz

Current Supply: 10.5mA

Slew Rate: 25 V/s

Voltage Input Offset: 1mV

Current Output / Channel: 35mA

Current Input Bias: 100pA

Voltage Supply, Single/Dual (±): 9 V ~ 48 V, ±4.5 V ~ 24 V

Product Advantages

High-performance general-purpose amplifier

Wide supply voltage range

Low input offset voltage

High output current capability

Key Technical Parameters

Number of Circuits: 2

Amplifier Type: General Purpose

Operating Temperature: -25°C ~ 85°C

Quality and Safety Features

Lead free / RoHS Compliant

Compatibility

Manufacturer Packaging: 8-PDIP

Package / Case: 8-DIP (0.300", 7.62mm)

Mounting Type: Through Hole

Application Areas

Suitable for a variety of general-purpose amplifier applications

Product Lifecycle

This product is currently available and not nearing discontinuation.

Replacement or upgrade options may be available from the manufacturer.

Several Key Reasons to Choose This Product

High-performance dual operational amplifier

Wide supply voltage range

Low input offset voltage

High output current capability

Compact and through-hole mountable package

RoHS compliance for environmental friendliness

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments OPA2604AP

Product Attribute OPA2604AP OPA2604AU/2K5 OPA2607H/2K5 OPA2544T
Part Number OPA2604AP OPA2604AU/2K5 OPA2607H/2K5 OPA2544T
Manufacturer Texas Instruments Texas Instruments Burr Brown Texas Instruments
Other Names 296-43499-5
OPA2604AP-ND		 - - -
Moisture Sensitivity Level (MSL) 1 (Unlimited) - - -
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -40°C ~ 125°C (TA) -40°C ~ 85°C
Number of Circuits 2 2 2 2
Current - Output / Channel 35mA 35 mA 60 mA 4 A
Supplier Device Package 8-PDIP 8-SOIC 8-HSOP TO-220-11
Current - Supply 10.5mA 10.5mA (x2 Channels) 900µA (x2 Channels) 22mA (x2 Channels)
Mounting Type Through Hole Surface Mount Surface Mount Through Hole
Series - - - -
Voltage - Supply, Single/Dual (±) 9 V ~ 48 V, ±4.5 V ~ 24 V - - -
Base Part Number OPA2604 - - -
Slew Rate 25 V/µs 25V/µs 24V/µs 8V/µs
Detailed Description General Purpose Amplifier 2 Circuit 8-PDIP - - -
Packaging Tube - - -
Gain Bandwidth Product 20MHz 20 MHz 50 MHz 1.4 MHz
Package / Case 8-DIP (0.300", 7.62mm) 8-SOIC (0.154", 3.90mm Width) 8-SOIC (0.154", 3.90mm Width) Exposed Pad TO-220-11 (Formed Leads)
Current - Input Bias 100pA 100 pA 3 pA 15 pA
Output Type - Differential Rail-to-Rail -
Voltage - Input Offset 1mV 1 mV 120 µV 1 mV
Lead Free Status / RoHS Status Lead free / RoHS Compliant - - -
Amplifier Type General Purpose General Purpose CMOS General Purpose
