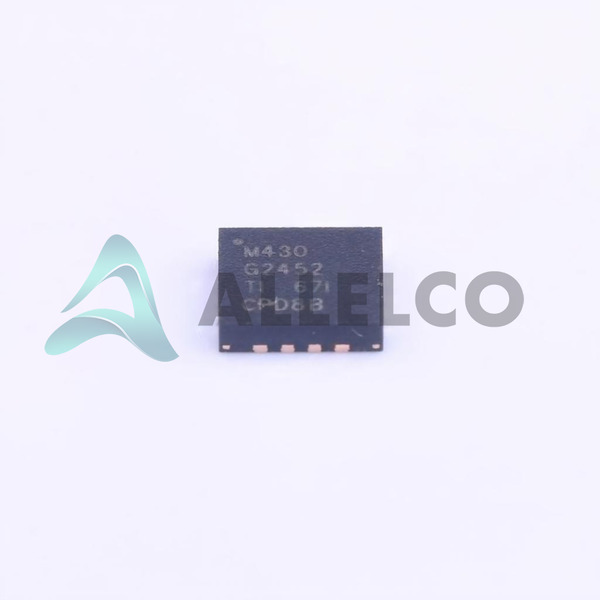

MSP430G2452IRSA16R - Texas Instruments

Name: Texas Instruments MSP430G2452IRSA16R
Brand: Texas Instruments
SKU: MSP430G2452IRSA16R
Availability: InStock
Rating: 5 (6 reviews)

Manufacturer Part Number: MSP430G2452IRSA16R

Manufacturer: Texas Instruments

Allelco Part Number: 32D-MSP430G2452IRSA16R

ECAD Model

Parts Description: IC MCU 16BIT 8KB FLASH 16QFN

Package: 16-VQFN Exposed Pad

Data sheet: MSP430G2x12,x52 Datasheet.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 41220

EXPRESS OPTION

Payment method

Our certification

Specifications

MSP430G2452IRSA16R Tech Specifications
Texas Instruments - MSP430G2452IRSA16R technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - MSP430G2452IRSA16R

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V
Supplier Device Package	16-QFN (4x4)
Speed	16MHz
Series	MSP430G2xx
RAM Size	256 x 8
Program Memory Type	FLASH
Program Memory Size	8KB (8K x 8)
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Package / Case	16-VQFN Exposed Pad
Package	Tape & Reel (TR)

Product Attribute	Attribute Value
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Number of I/O	10
Mounting Type	Surface Mount
EEPROM Size	-
Data Converters	A/D 8x10b
Core Size	16-Bit
Core Processor	MSP430 CPU16
Connectivity	I²C, SPI, USI
Base Product Number	MSP430G2452

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.31.0001

Parts Introduction

Manufacturer Part Number

MSP430G2452IRSA16R

Manufacturer

Texas Instruments

Introduction

Integrated Circuit (IC)

Embedded Microcontroller

Product Features and Performance

16-Bit MSP430 CPU

8KB Flash Program Memory

256 Bytes RAM

10 I/O Pins

8-Channel 10-Bit ADC

SPI, USI Connectivity

Internal Oscillator

Brown-Out Detection and Reset

DMA, POR, PWM, Watchdog Timer

Product Advantages

Low Power Consumption

Compact 16-QFN (4x4) Package

Wide Operating Temperature Range (-40°C to 85°C)

RoHS3 Compliant

Key Technical Parameters

Operating Voltage: 1.8V to 3.6V

Maximum Clock Speed: 16MHz

Analog-to-Digital Converter: 8-Channel, 10-Bit

Quality and Safety Features

RoHS3 Compliant

Brown-Out Detection and Reset

Power-On Reset (POR)

Compatibility

Compatible with MSP430 Microcontroller Series

Application Areas

Portable Electronics

Industrial Automation

Sensor Nodes

Metering

Home Automation

Product Lifecycle

Currently in production

Replacement/Upgrade options available within the MSP430 Series

Key Reasons to Choose This Product

Excellent low-power performance

Extensive peripheral set for versatile applications

Compact and space-efficient package

Wide operating temperature range

Robust safety and quality features

Compatibility with the MSP430 ecosystem

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments MSP430G2452IRSA16R

Product Attribute
Part Number	MSP430G2452IRSA16R	MSP430G2452IPW20R	MSP430G2453IPW20R	MSP430G2433IPW28R
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Operating Temperature	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)
Oscillator Type	Internal	Internal	Internal	Internal
RAM Size	256 x 8	256 x 8	512 x 8	512 x 8
Series	MSP430G2xx	MSP430G2xx	MSP430G2xx	MSP430G2xx
Number of I/O	10	16	16	24
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Base Product Number	MSP430G2452	MSP430G2452	MSP430G2453	MSP430G2433
Supplier Device Package	16-QFN (4x4)	20-TSSOP	20-TSSOP	28-TSSOP
Connectivity	I²C, SPI, USI	I²C, SPI, USI	I²C, IrDA, LINbus, SCI, SPI, UART/USART	I²C, IrDA, LINbus, SCI, SPI, UART/USART
Package	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
EEPROM Size	-	-	-	-
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V	1.8V ~ 3.6V	1.8V ~ 3.6V	1.8V ~ 3.6V
Package / Case	16-VQFN Exposed Pad	20-TSSOP (0.173', 4.40mm Width)	20-TSSOP (0.173", 4.40mm Width)	28-TSSOP (0.173", 4.40mm Width)
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT	Brown-out Detect/Reset, DMA, POR, PWM, WDT	Brown-out Detect/Reset, DMA, POR, PWM, WDT	Brown-out Detect/Reset, PWM, WDT
Data Converters	A/D 8x10b	A/D 8x10b	A/D 8x10b	A/D 8x10b
Program Memory Size	8KB (8K x 8)	8KB (8K x 8)	8KB (8K x 8)	8KB (8K x 8)
Program Memory Type	FLASH	FLASH	FLASH	FLASH
Core Size	16-Bit	16-Bit	16-Bit	16-Bit
Core Processor	MSP430 CPU16	MSP430 CPU16	MSP430 CPU16	MSP430 CPU16
Speed	16MHz	16MHz	16MHz	16MHz

MSP430G2452IRSA16R Datasheet PDF

Download MSP430G2452IRSA16R pdf datasheets and Texas Instruments documentation for MSP430G2452IRSA16R - Texas Instruments.

PCN Assembly/Origin: 2.73KHz.pdf
HTML Datasheet: MSP430G2x12,x52 Datasheet.pdf
