HomeProductsIntegrated Circuits (ICs)Embedded - MicrocontrollersMSP430G2001IPW14R

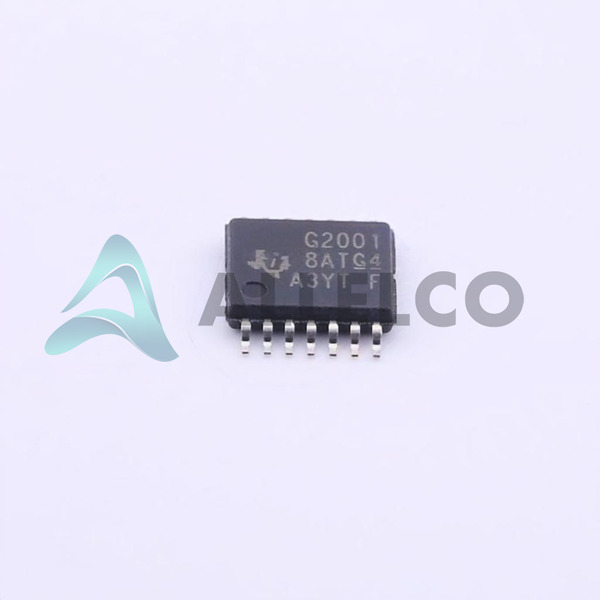

MSP430G2001IPW14R Image
Image may be representation.
See specifications for product details.
EXPRESS OPTION
Payment method

MSP430G2001IPW14R - Texas Instruments

Manufacturer Part Number
MSP430G2001IPW14R
Manufacturer
Texas Instruments
Allelco Part Number
32D-MSP430G2001IPW14R
ECAD Model
Parts Description
IC MCU 16BIT 512B FLASH 14TSSOP
Package
14-TSSOP (0.173', 4.40mm Width)
Data sheet
MSP430x2xx User Guide.pdf
MSP430G2x01,11 Datasheet.pdf
RoHs Status
ROHS3 Compliant
Our certification
In stock: 78070

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

MSP430G2001IPW14R Tech Specifications
Texas Instruments - MSP430G2001IPW14R technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - MSP430G2001IPW14R

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Vcc/Vdd) 1.8V ~ 3.6V
Supplier Device Package 14-TSSOP
Speed 16MHz
Series MSP430G2xx
RAM Size 128 x 8
Program Memory Type FLASH
Program Memory Size 512B (512 x 8)
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Package / Case 14-TSSOP (0.173', 4.40mm Width)
Package Tape & Reel (TR)
Product Attribute Attribute Value
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Number of I/O 10
Mounting Type Surface Mount
EEPROM Size -
Data Converters -
Core Size 16-Bit
Core Processor MSP430 CPU16
Connectivity -
Base Product Number MSP430G2001

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001

Parts Introduction

Manufacturer Part Number

MSP430G2001IPW14R

Manufacturer

Texas Instruments

Introduction

Low-power 16-Bit MSP430 Microcontroller for embedded applications

Product Features and Performance

16-Bit MSP430 CPU16 core

Maximum speed of 16MHz

Programmable with 512B FLASH memory

Embedded 128-byte RAM

10 I/O pins for flexible connectivity

Internal oscillator for clock generation

Low-power operation modes for energy efficiency

Brown-out detect/reset, Power-on Reset (POR)

Pulse Width Modulation (PWM) support

Watchdog Timer (WDT) for system reliability

Product Advantages

High performance with 16-bit architecture

Excellent for battery-powered applications due to low-power consumption

On-chip peripherals enhance system integration

Flash memory allows for flexible programming and updates

Robust operation through built-in safety features

Key Technical Parameters

Program Memory Size: 512B (512 x 8)

RAM Size: 128 x 8

Number of I/O: 10

Speed: 16MHz

Supply Voltage range: 1.8V to 3.6V

Operating Temperature range: -40°C to 85°C

Mounting Type: Surface Mount

Package: 14-TSSOP

Quality and Safety Features

Brown-out Detect/Reset

Power-on Reset (POR)

Watchdog Timer (WDT) for system monitoring

Compatibility

Compatible with a range of analog and digital peripherals

Supports various communication interfaces when paired with external components

Application Areas

Consumer electronics

Portable medical devices

Automation controls

Low-power sensor systems

Wireless connectivity solutions

Product Lifecycle

Product Status: Active

Not nearing discontinuation

Replacements or upgrades may be available

Several Key Reasons to Choose This Product

Energy efficient, ideal for battery-operated devices

Comprehensive on-chip features that minimize external components

Easy to incorporate in various design architectures

Supported by Texas Instruments' development and programming tools

Reliable performance across a broad temperature range

Good support and documentation from Texas Instruments

Affordable and widely available in surface mount packaging

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments MSP430G2001IPW14R

Product Attribute MSP430G2001IPW14R MSP430G2111IPW14R MSP430G2102IPW20R MSP430FW423IPMR
Part Number MSP430G2001IPW14R MSP430G2111IPW14R MSP430G2102IPW20R MSP430FW423IPMR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Peripherals Brown-out Detect/Reset, POR, PWM, WDT Brown-out Detect/Reset, POR, PWM, WDT Brown-out Detect/Reset, DMA, POR, PWM, WDT Brown-out Detect/Reset, LCD, POR, PWM, WDT
Voltage - Supply (Vcc/Vdd) 1.8V ~ 3.6V 1.8V ~ 3.6V 1.8V ~ 3.6V 1.8V ~ 3.6V
Core Size 16-Bit 16-Bit 16-Bit 16-Bit
Package / Case 14-TSSOP (0.173', 4.40mm Width) 14-TSSOP (0.173', 4.40mm Width) 20-TSSOP (0.173', 4.40mm Width) 64-LQFP
Number of I/O 10 10 16 48
Speed 16MHz 16MHz 16MHz 8MHz
Series MSP430G2xx MSP430G2xx MSP430G2xx MSP430x4xx
Program Memory Size 512B (512 x 8) 1KB (1K x 8) 1KB (1K x 8) 8KB (8K x 8 + 256B)
Oscillator Type Internal Internal Internal Internal
Connectivity - - I²C, SPI, USI -
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
EEPROM Size - - - -
Supplier Device Package 14-TSSOP 14-TSSOP 20-TSSOP 64-LQFP (10x10)
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Data Converters - - - Slope A/D
RAM Size 128 x 8 128 x 8 128 x 8 256 x 8
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Core Processor MSP430 CPU16 MSP430 CPU16 MSP430 CPU16 MSP430 CPU16
Program Memory Type FLASH FLASH FLASH FLASH
Base Product Number MSP430G2001 MSP430G2111 MSP430G2102 MSP430FW423
