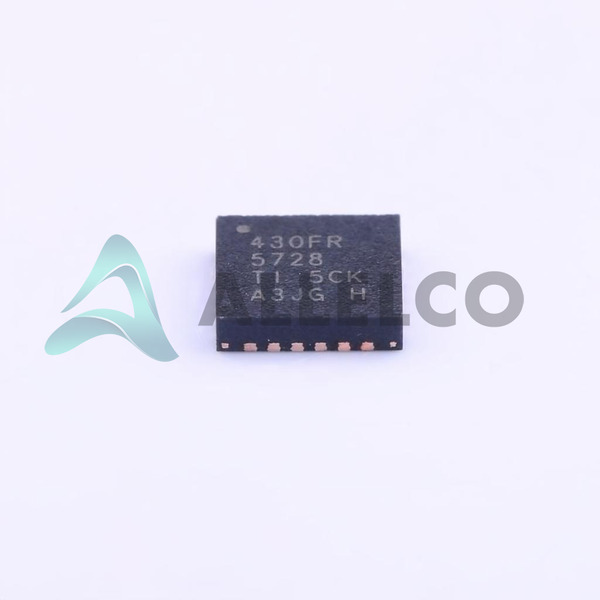

Image may be representation.
See specifications for product details.

~~Favorite~~

MSP430FR5728IRGER - Texas Instruments

Manufacturer Part Number: MSP430FR5728IRGER

Manufacturer: Texas Instruments

Allelco Part Number: 32D-MSP430FR5728IRGER

ECAD Model

Parts Description: IC MCU 16BIT 16KB FRAM 24VQFN

Detailed Description

Package: 24-VFQFN Exposed Pad

Data sheet: MSP430FR57xx Family User Guide.pdf
MSP430FR57xx Datasheet.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

In stock: 22023

Specifications

MSP430FR5728IRGER Tech Specifications
Texas Instruments - MSP430FR5728IRGER technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - MSP430FR5728IRGER

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Supply (Vcc/Vdd)	2V ~ 3.6V
Supplier Device Package	24-VQFN (4x4)
Speed	8MHz
Series	MSP430™ FRAM
RAM Size	1K x 8
Program Memory Type	FRAM
Program Memory Size	16KB (16K x 8)
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Package / Case	24-VFQFN Exposed Pad
Package	Tape & Reel (TR)

Product Attribute	Attribute Value
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Number of I/O	17
Mounting Type	Surface Mount
EEPROM Size	-
Data Converters	A/D 8x10b
Core Size	16-Bit
Core Processor	MSP430 CPUXV2
Connectivity	I²C, IrDA, LINbus, SCI, SPI, UART/USART
Base Product Number	MSP430FR5728

Parts Introduction

Manufacturer Part Number

MSP430FR5728IRGER

Manufacturer

Texas Instruments

Introduction

Integrated Circuit (IC) Microcontroller

Product Features and Performance

16-bit MSP430 CPUXV2 core

16KB FRAM program memory

1KB RAM

8-channel 10-bit ADC

Internal oscillator

Brown-out detect and reset

Power-on reset

Watchdog timer

PWM functionality

UART/USART, SPI, IrDA, LIN bus connectivity

Product Advantages

Low power consumption

Fast wake-up from low-power modes

Reliable FRAM program memory

Flexible peripheral set

Wide operating temperature range

Key Technical Parameters

2V to 3.6V supply voltage

8MHz maximum CPU speed

24-pin VQFN package

-40°C to 85°C operating temperature

Quality and Safety Features

RoHS3 compliant

24-pin VQFN (4x4) package

Compatibility

Compatible with other MSP430 FRAM series microcontrollers

Application Areas

Portable and battery-powered devices

Industrial automation and control

Smart meters and sensors

IoT and wireless applications

Product Lifecycle

Currently in production

Replacements and upgrades available within the MSP430 FRAM series

Key Reasons to Choose This Product

Energy-efficient performance with FRAM technology

Flexible peripheral set for diverse applications

Wide operating temperature range for industrial use

Reliable and robust design for long-term reliability

Ease of integration with existing MSP430 FRAM systems

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments MSP430FR5728IRGER

Product Attribute
Part Number	MSP430FR5728IRGER	MSP430FR5847IRHAR	MSP430FR4133IG48R	MSP430FR5739IRHAR
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Operating Temperature	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)
Number of I/O	17	33	44	32
Supplier Device Package	24-VQFN (4x4)	40-VQFN (6x6)	48-TSSOP	40-VQFN (6x6)
Speed	8MHz	16MHz	16MHz	24MHz
RAM Size	1K x 8	1K x 8	2K x 8	1K x 8
EEPROM Size	-	-	-	-
Package	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Data Converters	A/D 8x10b	A/D 14x12b	A/D 8x10b	A/D 14x10b
Base Product Number	MSP430FR5728	MSP430FR5847	MSP430FR4133	MSP430FR5739
Program Memory Size	16KB (16K x 8)	32KB (32K x 8)	15.5KB (15.5K x 8)	16KB (16K x 8)
Core Processor	MSP430 CPUXV2	MSP430 CPUXV2	MSP430 CPU16	MSP430 CPUXV2
Package / Case	24-VFQFN Exposed Pad	40-VFQFN Exposed Pad	48-TFSOP (0.240', 6.10mm Width)	40-VFQFN Exposed Pad
Core Size	16-Bit	16-Bit	16-Bit	16-Bit
Oscillator Type	Internal	Internal	Internal	Internal
Program Memory Type	FRAM	FRAM	FRAM	FRAM
Voltage - Supply (Vcc/Vdd)	2V ~ 3.6V	1.8V ~ 3.6V	1.8V ~ 3.6V	2V ~ 3.6V
Series	MSP430™ FRAM	MSP430™ FRAM	MSP430™ FRAM	MSP430™ FRAM
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT	Brown-out Detect/Reset, DMA, POR, PWM, WDT	Brown-out Detect/Reset, LCD, POR, PWM, WDT	Brown-out Detect/Reset, POR, PWM, WDT
Connectivity	I²C, IrDA, LINbus, SCI, SPI, UART/USART	I²C, IrDA, SCI, SPI, UART/USART	I²C, IrDA, SCI, SPI, UART/USART	I²C, IrDA, LINbus, SCI, SPI, UART/USART
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount

MSP430FR5728IRGER Datasheet PDF

Download MSP430FR5728IRGER pdf datasheets and Texas Instruments documentation for MSP430FR5728IRGER - Texas Instruments.

Datasheets: MSP430FR57xx Family User Guide.pdf
PCN Assembly/Origin: 2.73KHz.pdf
PCN Other: 2.73KHz.pdf
HTML Datasheet: MSP430FR57xx Datasheet.pdf
Errata: MSP430FR5728 Errata.pdf
