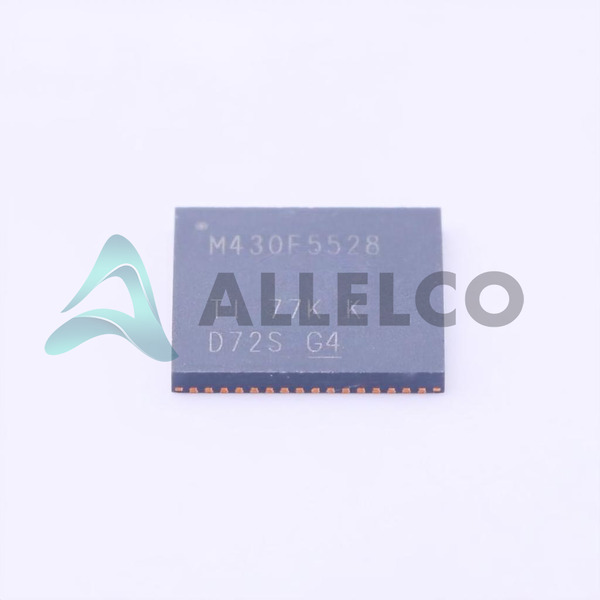

MSP430F5528IRGCR - Texas Instruments

Manufacturer Part Number

MSP430F5528IRGCR

Manufacturer

Texas Instruments

Introduction

MSP430F5528IRGCR belongs to the MSP430F5xx series of ultra-low-power microcontrollers designed for embedded applications.

Product Features and Performance

16-Bit MSP430 CPUXV2 core

25MHz Operating Speed

128KB Flash Memory

10KB RAM

12-bit Analog-to-Digital Converter

I2C, IrDA, LINbus, SCI, SPI, UART/USART, USB connectivity

47 Digital I/O Pins

Internal Oscillator

DMA, PWM, WDT, Brown-out Detect/Reset, POR Peripherals

Product Advantages

Ultra-low power consumption

High integration for reduced system complexity and cost

Advanced control features for enhanced system performance

Flexible power management system

Key Technical Parameters

Core Size: 16-Bit

Speed: 25MHz

Program Memory Size: 128KB

RAM Size: 10KB

Voltage - Supply: 1.8V ~ 3.6V

Data Converters: A/D 12x12b

Operating Temperature: -40°C ~ 85°C

Quality and Safety Features

Brown-out Detect/Reset

Watchdog Timer (WDT) for system protection and reliability

Compatibility

SPI, I2C standard communication interfaces

Compatible with many sensors and peripherals

Application Areas

Consumer Electronics

Industrial Automation

Measurement Equipment

Medical Devices

Wireless connectivity systems

Product Lifecycle

Active Product Status

Not reported as nearing discontinuation

Several Key Reasons to Choose This Product

Low power operation ideal for battery-powered applications

Flexibility with various built-in communication peripherals

Large number of I/Os for extensive interfacing capabilities

Robust operating temperature range for challenging environments

High-capacity Flash memory for complex embedded applications

Integrated safety features to ensure product reliability
