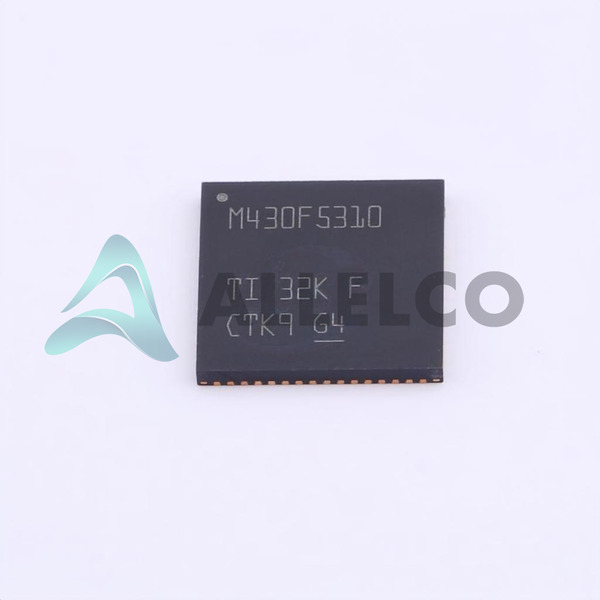

MSP430F5310IRGCR - Texas Instruments

Manufacturer Part Number

MSP430F5310IRGCR

Manufacturer

Texas Instruments

Introduction

MSP430F5310IRGCR is a high-performance, low-power 16-bit microcontroller from Texas Instruments, optimized for various embedded applications.

Product Features and Performance

Core Processor: MSP430 CPUXV2, a 16-Bit processor

Speed: Operates at up to 25MHz

Connectivity: Features I2C, IrDA, LINbus, SCI, SPI, UART/USART for extensive peripheral integration

Peripherals: Includes Brown-out Detect/Reset, DMA, POR, PWM, WDT for robust operational efficiency

Number of I/O: 47 programmable input/output pins

Program Memory Size: 32KB Flash

RAM Size: 6KB

Voltage Supply (Vcc/Vdd): Operates between 1.8V to 3.6V

Data Converters: Equipped with 12x10b A/D converters

Oscillator Type: Internal, reducing the need for external components

Operating Temperature: Designed to function in environments from -40°C to 85°C

Mounting Type: Surface Mount technology for simplified board assembly

Product Advantages

Low power consumption enhances battery life in portable devices

High integration with multiple communication interfaces supports varied applications

Robust set of peripherals increases system reliability

Internal oscillator reduces external part count, saving space and cost

Wide operating temperature range makes it suitable for harsh environments

Key Technical Parameters

16-Bit Core Processor

25MHz Operation Speed

32KB Flash Memory

6KB RAM

12x10b A/D Converters

8V to 3.6V Supply Voltage

64-VQFN (9x9) Package

Quality and Safety Features

Brown-out Detect/Reset and Watchdog Timer (WDT) for system integrity

Power-on Reset (POR) ensures reliable startup

Compatibility

Compatible with a wide range of development tools from Texas Instruments

Supports multiple communication protocols for easy integration with peripherals

Application Areas

Consumer Electronics

Sensing & Instrumentation

Wireless Connectivity

Industrial Controls

Medical Devices

Product Lifecycle

Status: Active

This product is not nearing discontinuation, and replacements or upgrades are readily available

Several Key Reasons to Choose This Product

High performance-to-power ratio for energy-efficient applications

Extensive connectivity options enable versatile use in various designs

Comprehensive peripheral set supports complex functionalities without additional components

Wide voltage and temperature operating ranges accommodate diverse environments

Strong support and resources available from Texas Instruments including development tools and software libraries
