HomeProductsIntegrated Circuits (ICs)Embedded - MicrocontrollersMSP430F4794IPZR

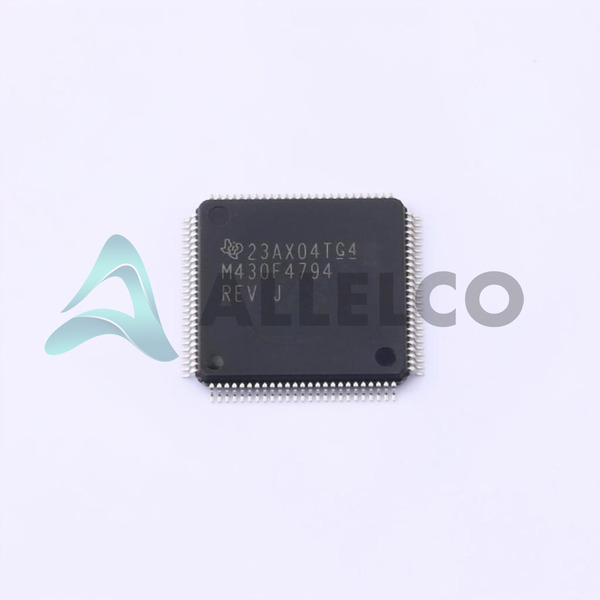

MSP430F4794IPZR Image
MSP430F4794IPZR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

MSP430F4794IPZR - Texas Instruments

Manufacturer Part Number
MSP430F4794IPZR
Manufacturer
Texas Instruments
Allelco Part Number
32D-MSP430F4794IPZR
ECAD Model
Parts Description
IC MCU 16BIT 60KB FLASH 100LQFP
Package
100-LQFP
Data sheet
MSP430x47x3, x4 Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 4401

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

MSP430F4794IPZR Tech Specifications
Texas Instruments - MSP430F4794IPZR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - MSP430F4794IPZR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Vcc/Vdd) 1.8V ~ 3.6V
Supplier Device Package 100-LQFP (14x14)
Speed 16MHz
Series MSP430x4xx
RAM Size 2.5K x 8
Program Memory Type FLASH
Program Memory Size 60KB (60K x 8 + 256B)
Peripherals Brown-out Detect/Reset, LCD, POR, PWM, WDT
Package / Case 100-LQFP
Package Tape & Reel (TR)
Product Attribute Attribute Value
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Number of I/O 72
Mounting Type Surface Mount
EEPROM Size -
Data Converters A/D 4x16b
Core Size 16-Bit
Core Processor MSP430 CPU16
Connectivity I²C, IrDA, LINbus, SCI, SPI, UART/USART
Base Product Number MSP430F4794

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001

Parts Introduction

Manufacturer Part Number

MSP430F4794IPZR

Manufacturer

Texas Instruments

Introduction

The MSP430F4794IPZR is a low-power 16-bit microcontroller from Texas Instruments, designed for embedded applications.

Product Features and Performance

16-Bit MSP430 CPU16 Core

16MHz Operating Speed

60KB Program Flash Memory

5KB RAM

72 Programmable I/O pins

Integrated LCD Controller

I2C, IrDA, LINbus, SCI, SPI, UART/USART Connectivity Options

Peripherals include Brown-out Detect/Reset, Power-On Reset, PWM, Watchdog Timer

A/D Converters: 4 x 16-bit

Internal Oscillator

Product Advantages

Optimized for Low Power Consumption

Extensive Communication Support

Built-in LCD Driver for Direct Display Integration

Flexible Range of I/O to Interface with Various Peripherals

Integrated Analog-to-Digital Converters Enhance Sensing Capabilities

Suited for Battery-Powered and Portable Applications

Key Technical Parameters

Core Processor: MSP430 CPU16

Core Size: 16-Bit

Speed: 16MHz

Program Memory Size: 60KB (60K x 8 + 256B)

RAM Size: 2.5K x 8

Voltage Supply Range: 1.8V to 3.6V

Operating Temperature Range: -40°C to 85°C

Mounting Type: Surface Mount

Package: 100-LQFP (14x14)

Quality and Safety Features

Integrated Brown-out Detect/Reset

Power-On Reset (POR) Circuitry

Robust Watchdog Timer (WDT) for System Protection

Compatibility

Compatible with Various Communication Protocols

Interoperable with a Wide Range of External Devices

Application Areas

Smart Meters

Portable Medical Devices

Consumer Electronics

Home Automation Systems

Industrial Control Units

Product Lifecycle

Active Status

Not Nearing Discontinuation

Availability of Replacements or Upgrades Ensured by Texas Instruments

Reasons to Choose This Product

Energy-Efficient Performance Ideal for Battery-Managed Devices

Comprehensive Set of Features Supports Complex Applications

Highly Integrated Design Reduces Component Count and System Cost

Robust for Industrial Environments with Extended Temperature Range

Backed by Texas Instruments' Reputation for Quality and Longevity in Product Support

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments MSP430F4794IPZR

Product Attribute MSP430F4794IPZR MSP430F4793IPZ MSP430F5152IRSBR MSP430F4793IPZR
Part Number MSP430F4794IPZR MSP430F4793IPZ MSP430F5152IRSBR MSP430F4793IPZR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Package Tape & Reel (TR) Tray Tape & Reel (TR) Tape & Reel (TR)
Data Converters A/D 4x16b A/D 3x16b A/D 11x10b A/D 3x16b
Base Product Number MSP430F4794 MSP430F4793 MSP430F5152 MSP430F4793
Connectivity I²C, IrDA, LINbus, SCI, SPI, UART/USART I²C, IrDA, LINbus, SCI, SPI, UART/USART I²C, IrDA, SCI, SPI, UART/USART I²C, IrDA, LINbus, SCI, SPI, UART/USART
Core Processor MSP430 CPU16 MSP430 CPU16 MSP430 CPUXV2 MSP430 CPU16
EEPROM Size - - - -
Oscillator Type Internal Internal Internal Internal
Number of I/O 72 72 31 72
Series MSP430x4xx MSP430x4xx MSP430F5xx MSP430x4xx
Speed 16MHz 16MHz 25MHz 16MHz
Program Memory Size 60KB (60K x 8 + 256B) 60KB (60K x 8 + 256B) 16KB (16K x 8) 60KB (60K x 8 + 256B)
Supplier Device Package 100-LQFP (14x14) 100-LQFP (14x14) 40-WQFN (5x5) 100-LQFP (14x14)
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
Peripherals Brown-out Detect/Reset, LCD, POR, PWM, WDT Brown-out Detect/Reset, LCD, POR, PWM, WDT Brown-out Detect/Reset, DMA, POR, PWM, WDT Brown-out Detect/Reset, LCD, POR, PWM, WDT
RAM Size 2.5K x 8 2.5K x 8 2K x 8 2.5K x 8
Program Memory Type FLASH FLASH FLASH FLASH
Voltage - Supply (Vcc/Vdd) 1.8V ~ 3.6V 1.8V ~ 3.6V 1.8V ~ 3.6V 1.8V ~ 3.6V
Core Size 16-Bit 16-Bit 16-Bit 16-Bit
Package / Case 100-LQFP 100-LQFP 40-WFQFN Exposed Pad 100-LQFP
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount

MSP430F4794IPZR Datasheet PDF

Download MSP430F4794IPZR pdf datasheets and Texas Instruments documentation for MSP430F4794IPZR - Texas Instruments.

PCN Assembly/Origin
Mult Devices 23/Feb/2018.pdf
HTML Datasheet
MSP430x47x3, x4 Datasheet.pdf
