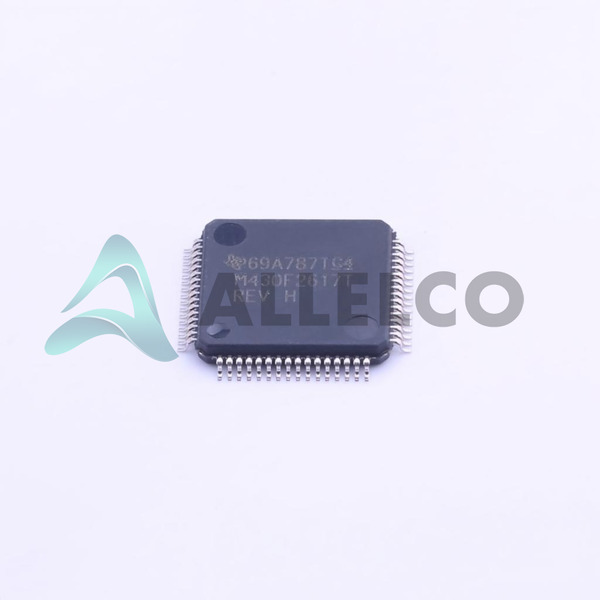

MSP430F2617TPMR - Texas Instruments

Manufacturer Part Number

MSP430F2617TPMR

Manufacturer

Texas Instruments

Introduction

The MSP430F2617TPMR is a 16-bit Embedded Microcontroller from Texas Instruments designed for low-power and high-performance applications.

Product Features and Performance

16-Bit MSP430 CPU16 Core

Speed of 16MHz

Multiple Connectivity Options: I2C, IrDA, LINbus, SCI, SPI, UART/USART

Peripherals include Brown-out Detect/Reset, DMA, POR, PWM, WDT

48 I/O ports

Program Memory Size of 92KB (92K x 8 + 256B) FLASH

8K x 8 RAM Size

Product Advantages

Optimized for low-power consumption

Rich set of peripherals enhancing system capabilities

Highly versatile with broad connectivity options

Robust design suitable for wide range of temperatures

Key Technical Parameters

Core Size: 16-Bit

Speed: 16MHz

Program Memory: 92KB FLASH

RAM: 8KB

Voltage Supply: 1.8V to 3.6V

Data Converters: A/D 8x12b, D/A 2x12b

Operating Temperature: -40°C to 105°C

Quality and Safety Features

Brown-out Detect/Reset

Watchdog Timer (WDT) for system reliability

Power-On Reset (POR)

Compatibility

Compatible with 64-LQFP (10x10) Surface Mount package

Application Areas

Industrial control systems

Consumer electronics

Automotive products

Wireless networking systems

Product Lifecycle

Status: Active

Not nearing discontinuation and replacements or upgrades are available

Several Key Reasons to Choose This Product

High performance with 16MHz speed and 16-bit architecture

Low energy consumption suitable for battery-powered devices

Extensive connectivity for diverse application use

Robust temperature and power supply range making it ideal for harsh environments

Highly reliable with safety features like Brown-out Detect/Reset and WDT
