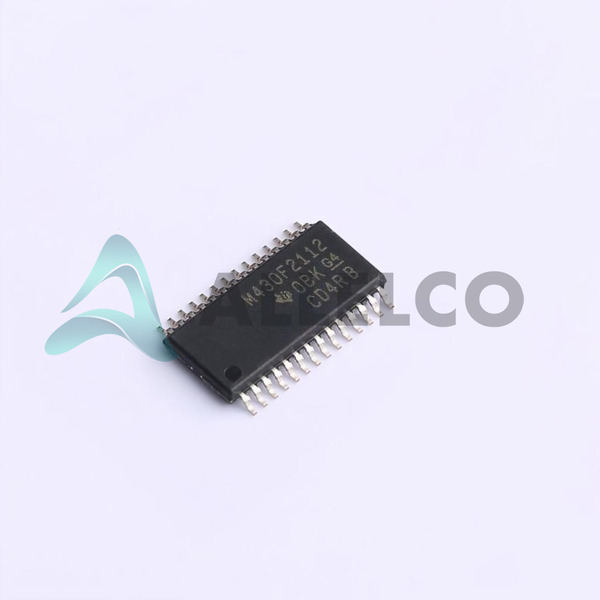

MSP430F2112IPWR - Texas Instruments

Manufacturer Part Number

MSP430F2112IPWR

Manufacturer

Texas Instruments

Introduction

Low-power 16-bit microcontroller for embedded applications

Product Features and Performance

16-Bit MSP430 CPU16 Core

Speed of 16MHz

Connectivity options: I2C, IrDA, LINbus, SCI, SPI, UART/USART

Peripherals include Brown-out Detect/Reset, POR, PWM, WDT

Program Memory of 2KB FLASH with additional 256 bytes and 256 x 8 RAM

24 I/O pins for flexible connection

A/D converter with 8 channels and 10-bit resolution

Internal oscillator for clock generation

Product Advantages

Optimized for low-power consumption

Flexible power management system

Wide array of serial communication interfaces

Robust peripheral set for versatile applications

Key Technical Parameters

Core Size: 16-Bit

Speed: 16MHz

Number of I/O: 24

Program Memory Size: 2KB (2K x 8 + 256B)

RAM Size: 256 x 8

Voltage - Supply: 1.8V ~ 3.6V

Data Converters: A/D 8x10b

Operating Temperature: -40°C ~ 85°C

Quality and Safety Features

Brown-out Detect/Reset ensures stable operation during power fluctuations

Supply voltage supervision with POR

Compatibility

Compatible with various interfaces for digital communication

Mounting Type: Surface Mount

Package / Case: 28-TSSOP

Application Areas

Automotive systems

Consumer electronics

Industrial controls

Medical devices

Power management

Product Lifecycle

Active status indicates current production with ongoing manufacturer support

Not nearing discontinuation

Potential future replacements or upgrades as technology evolves

Several Key Reasons to Choose This Product

Robust and versatile connectivity options for multiple applications

Ultra-low power consumption suits battery-powered devices

Built-in peripherals reduce additional component needs

High performance-to-power ratio enhances system efficiency

Reliable operation in a wide range of temperatures

Availability of extensive support and documentation from Texas Instruments
