Manufacturer Part Number

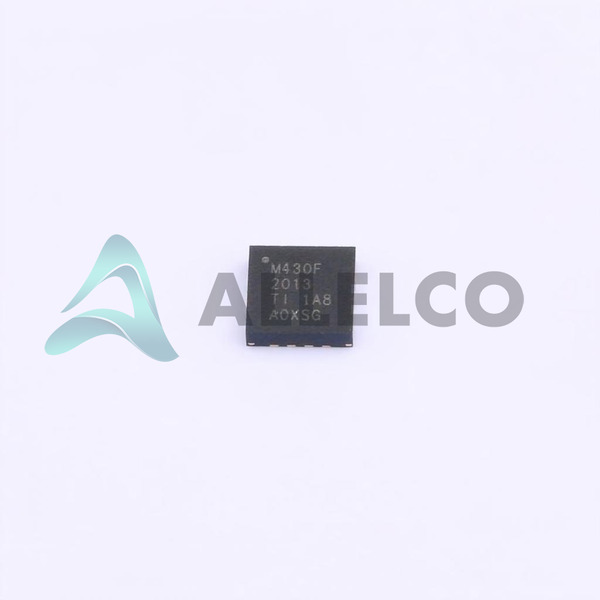

MSP430F2013IRSAR
Manufacturer
Texas Instruments
Introduction
Low-power microcontroller for embedded applications
Product Features and Performance
16-bit MSP430 CPU16 core
Up to 16MHz clock speed
Integrated I2C and SPI connectivity for peripheral devices
Brown-out detect/reset and power-on reset (POR) for improved reliability
Programmable watchdog timer (WDT) for system protection
Pulse-width modulation (PWM) for sophisticated control applications
10 programmable I/O ports for versatile interfacing
Onboard 2KB FLASH memory for program storage
128 x 8 RAM for data processing
An internal oscillator for clock generation
10-channel, 16-bit analog to digital converter (ADC)
Operates across a voltage range of 1.8V to 3.6V
Product Advantages
Low power consumption suitable for battery-powered devices
Robust peripheral set for diverse applications
Integrated ADC for sensor interfacing and data acquisition
Compact 16-QFN package for space-constrained applications
High integration reduces external components and system cost
Key Technical Parameters
Core Size: 16-Bit
Speed: 16MHz
Program Memory Size: 2KB
RAM Size: 128 x 8
Voltage - Supply: 1.8V ~ 3.6V
Operating Temperature: -40°C ~ 85°C
Quality and Safety Features
Hardware watchdog timer prevents system hangs
Brown-out reset avoids improper operation at low voltages
Compatibility
Compatible with Texas Instruments development tools and software
Application Areas
Sensing and measurement systems
Portable medical devices
Home automation
Consumer electronics
Industrial control systems
Product Lifecycle
Product status is Active
No indication of nearing discontinuation
Replacements or upgrades commonly available in the MSP430 product family
Key Reasons to Choose This Product
Low power consumption extends battery life for portable devices
Robust set of features supports a wide range of applications
Ability to operate in extreme temperatures (-40°C to 85°C)
Integrated ADC eliminates need for external components
High-level integration for reduced system complexity and cost
Support from Texas Instruments provides assurance for long-term development
