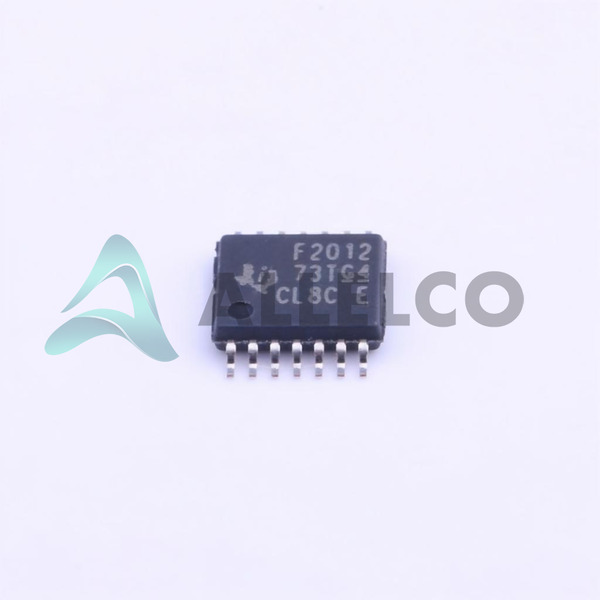

MSP430F2012IPWR - Texas Instruments

Manufacturer Part Number

MSP430F2012IPWR

Manufacturer

Texas Instruments

Introduction

The MSP430F2012IPWR is a low-power, high-performance 16-bit microcontroller from Texas Instruments' MSP430F2xx series, designed for embedded applications.

Product Features and Performance

16-Bit MSP430 CPU16 core processor, operating at up to 16MHz

Integrated I2C and SPI for serial connectivity

Peripherals include Brown-out Detect/Reset, Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT)

10 available I/O pins for flexible interfacing

2KB of FLASH program memory plus 256B of auxiliary memory

128 bytes of RAM for data processing

Internal oscillator for clock generation

Analog/Digital converter with 8 channels of 10-bit resolution

Product Advantages

Low power consumption suitable for battery-powered applications

High integration level reduces external component count

Capable of handling complex tasks with its 16-bit architecture

Easy to program with available development tools from Texas Instruments

Internal data converters and oscillators minimize external needs

Key Technical Parameters

Core Speed: 16MHz

Program Memory Size: 2KB FLASH

RAM Size: 128 x 8

Voltage Supply Range: 1.8V to 3.6V

Data Converters: A/D 8x10b

Temperature Range: -40°C to 85°C

Mounting Type: Surface Mount

Package: 14-TSSOP

Quality and Safety Features

Built-in brown-out and power-on reset circuits for improved system reliability

Watchdog timer for system recovery and protection

Compatibility

Compatible with Texas Instruments' development tools and software libraries

I2C and SPI interfaces for connectivity with peripherals and sensors

Application Areas

IoT devices

Sensor systems

Consumer electronics

Portable medical devices

Product Lifecycle

Status: Active, indicates ongoing production and support

Not currently listed as nearing discontinuation, ensuring long-term availability

Several Key Reasons to Choose This Product

High performance with 16-bit architecture and up to 16MHz operating speed

Low power consumption for energy-efficient designs

Comprehensive set of peripherals and internal features reduce additional component needs

Support and reliability from Texas Instruments, a leading manufacturer in the semiconductor industry

Active product status with no immediate discontinuation concerns, ensuring availability for future designs
