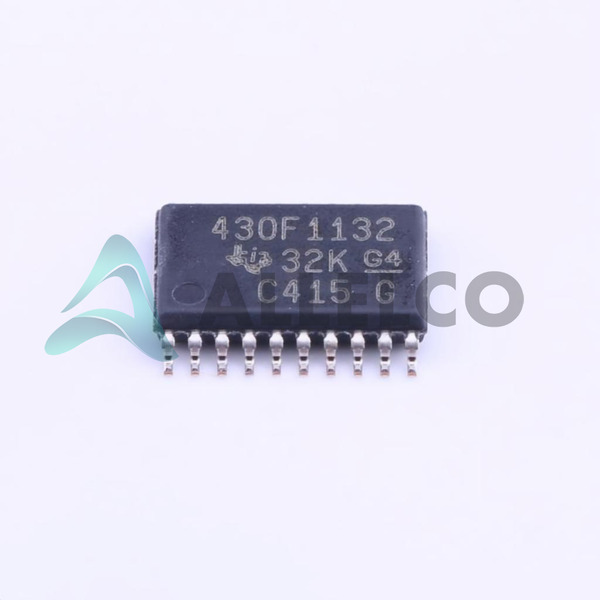

MSP430F1132IPWR - Texas Instruments

Manufacturer Part Number

MSP430F1132IPWR

Manufacturer

Texas Instruments

Introduction

The MSP430F1132IPWR is a low-power 16-bit microcontroller from Texas Instruments' MSP430x1xx series, designed for embedded applications.

Product Features and Performance

16-bit MSP430 CPU16 core

8MHz Operating speed

Brown-out Detect/Reset, Power-On Reset (POR), Pulse Width Modulation (PWM), Watchdog Timer (WDT)

14 Input/Output pins

8KB Flash Memory + 256 Bytes auxiliary memory

256x8 RAM

Integrated 10-bit analog-to-digital converter with 8 channels

Internal oscillator

Low power consumption

Product Advantages

Low operating voltage range of 1.8V to 3.6V

Extended operating temperature range: -40°C to 85°C

Efficient power management enabling longer battery life in portable devices

Key Technical Parameters

Core Size: 16-Bit

Speed: 8MHz

Program Memory Size: 8KB

RAM Size: 256 x 8

Voltage Supply: 1.8V ~ 3.6V

Number of I/O: 14

Operating Temperature: -40°C ~ 85°C

Quality and Safety Features

Brown-out Detect/Reset ensures proper functioning during low voltage conditions

Watchdog Timer prevents system hangs in erratic situations

Compatibility

Compatible with various MSP430F development tools for programming and debugging

Application Areas

Consumer Electronics

Industrial Control Systems

Sensor Systems

Portable Medical Devices

Product Lifecycle

Active status, product is in full production with no indication of discontinuation

Ongoing support for replacements and upgrades

Several Key Reasons to Choose This Product

Highly energy efficient for battery-powered applications

Robust performance in extreme temperature environments

Comprehensive set of integrated peripherals reducing external component count

Broad software and hardware tool support from Texas Instruments

Proven MSP430 platform known for reliability and long-term availability
