LP3982IMM-ADJ - Texas Instruments

Manufacturer Part Number

LP3982IMM-ADJ

Manufacturer

Texas Instruments

Introduction

The LP3982IMM-ADJ is a versatile, adjustable low dropout (LDO) voltage regulator specifically designed for Power Management IC (PMIC) applications that require efficient and precise voltage regulation.

Product Features and Performance

Adjustable output voltage from 1.25V to 6V

Maximum output current of 300mA

Low dropout voltage of 220mV at full load

Quiescent current of 270 µA

Supports enable control feature for power saving

Built-in over current and over temperature protection for safe operation

Operating temperature range from -40°C to 85°C

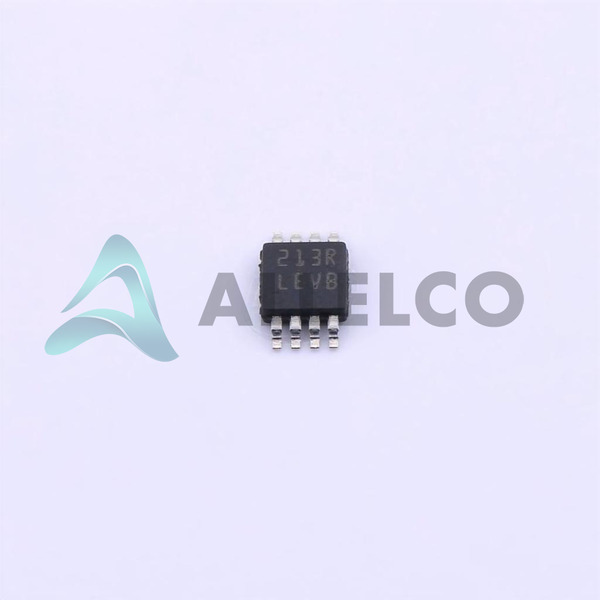

Surface Mount 8-TSSOP, 8-MSOP package for compact design

Product Advantages

High efficiency and precision in voltage regulation

Flexible output voltage adjustment for versatile application use

Low dropout performance for better power efficiency

Low quiescent current enhances battery life in portable devices

Comprehensive protection features ensure reliability and safety in operation

Wide operating temperature range suitable for various environments

Key Technical Parameters

Voltage - Input (Max): 6V

Voltage - Output (Min/Fixed): 1.25V

Voltage - Output (Max): 6V

Voltage Dropout (Max): 220mV

Current - Output: 300mA

Current - Quiescent (Iq): 270 µA

Packaging: Tape & Reel (TR)

Quality and Safety Features

Overcurrent protection

Overtemperature protection

Compatibility

Compatible with a wide range of electronic devices requiring adjustable voltage regulation

Application Areas

Consumer Electronics

Telecommunications

Portable/battery-powered devices

Networking

Computing devices

Product Lifecycle

Last Time Buy status indicates the product is nearing discontinuation. Users are advised to plan for future replacement or upgrade needs.

Several Key Reasons to Choose This Product

Highly efficient and precise voltage adjustment capability for diverse application needs

Low dropout and quiescent current improve power efficiency and extend battery life

Robust protection features ensure reliability and safety under various operating conditions

Versatile application range, from consumer electronics to industrial devices

Detailed technical support and documentation from Texas Instruments
