HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - LinearLP2985AIM5-5.0

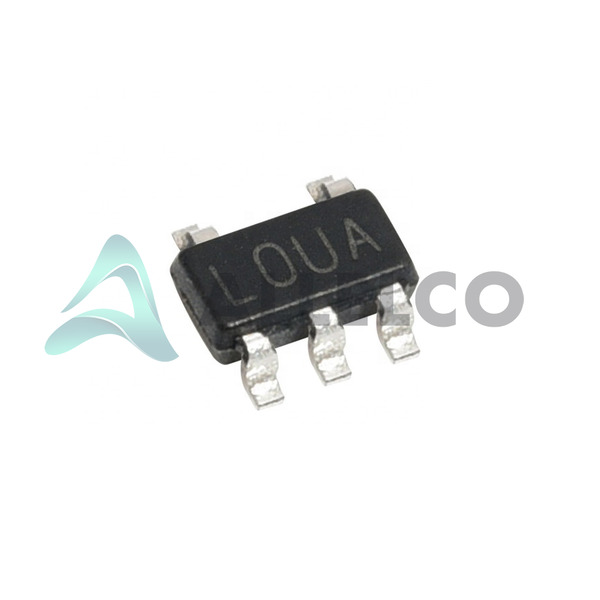

LP2985AIM5-5.0 Image
LP2985AIM5-5.0 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

LP2985AIM5-5.0 - Texas Instruments

Manufacturer Part Number
LP2985AIM5-5.0
Manufacturer
Texas Instruments
Allelco Part Number
32D-LP2985AIM5-5.0
ECAD Model
Parts Description
IC REG LINEAR 5V 150MA SOT23-5
Detailed Description
Package
SC-74A, SOT-753
Data sheet
LP2985AIM5-5.0.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 53220

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

LP2985AIM5-5.0 Tech Specifications
Texas Instruments - LP2985AIM5-5.0 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - LP2985AIM5-5.0

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage Dropout (Max) 0.58V @ 150mA
Voltage - Output (Min/Fixed) 5V
Voltage - Output (Max) -
Voltage - Input (Max) 16V
Supplier Device Package SOT-23-5
Series -
Protection Features Over Current, Over Temperature, Short Circuit
Package / Case SC-74A, SOT-753
Package Tape & Reel (TR)
PSRR 45dB (1kHz)
Product Attribute Attribute Value
Output Type Fixed
Output Configuration Positive
Operating Temperature -40°C ~ 125°C
Number of Regulators 1
Mounting Type Surface Mount
Current - Supply (Max) 2.5 mA
Current - Quiescent (Iq) 95 µA
Current - Output 150mA
Control Features Enable
Base Product Number LP2985

Parts Introduction

Manufacturer Part Number

LP2985AIM5-5.0

Manufacturer

Texas Instruments

Introduction

Low Dropout Voltage Regulator designed for power-sensitive applications

Product Features and Performance

Positive Fixed Output

Low Dropout: 0.58V at 150mA

Low Quiescent Current: 95 µA

High PSRR: 45dB at 1kHz

Surface Mount Package

Incorporates Control and Protection Features

Product Advantages

High efficiency for battery-powered applications

Minimal power loss during operation

Stable output with low voltage variance

Key Technical Parameters

Single Regulator Configuration

Input Voltage Max: 16V

Output Voltage Fixed: 5V

Current Output: 150mA

Supply Current Max: 2.5 mA

Operational Temperature Range: -40°C to 125°C

Quality and Safety Features

Over Current Protection

Over Temperature Protection

Short Circuit Protection

Compatibility

Compatible with SOT-23-5 package mounting

Application Areas

Handheld Devices

Portable Electronics

Battery-powered Applications

Low Power Devices

Product Lifecycle

Last Time Buy status

Options for replacement or upgrades may be limited

Key Reasons to Choose This Product

Reliable performance from Texas Instruments

Suitable for precision applications requiring stable voltage

Low quiescent current extends battery life

Compact form factor for space-constrained designs

Robust safety features ensure product longevity

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments LP2985AIM5-5.0

Product Attribute LP2985AIM5-5.0 LP2985AIM5X-2.0 LP2985AIM5X-12 LP2985AIM5-3.8
Part Number LP2985AIM5-5.0 LP2985AIM5X-2.0 LP2985AIM5X-12 LP2985AIM5-3.8
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Package Tape & Reel (TR) Tape & Reel (TR) Bulk Tape & Reel (TR)
Current - Quiescent (Iq) 95 µA 95 µA 95 µA 95 µA
Supplier Device Package SOT-23-5 SOT-23-5 SOT-23-5 SOT-23-5
Package / Case SC-74A, SOT-753 SC-74A, SOT-753 SC-74A, SOT-753 SC-74A, SOT-753
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Number of Regulators 1 1 1 1
Voltage - Output (Min/Fixed) 5V 2V 12V 3.8V
Protection Features Over Current, Over Temperature, Short Circuit Over Current, Over Temperature, Short Circuit Over Current, Over Temperature, Short Circuit Over Current, Over Temperature, Short Circuit
Voltage - Output (Max) - - - -
Control Features Enable Enable Enable Enable
Current - Output 150mA 150mA 150mA 150mA
Voltage Dropout (Max) 0.58V @ 150mA 0.58V @ 150mA 0.575V @ 150mA 0.58V @ 150mA
PSRR 45dB (1kHz) 45dB (1kHz) 45dB (1kHz) 45dB (1kHz)
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C (TJ) -40°C ~ 125°C
Current - Supply (Max) 2.5 mA 2.5 mA 2.5 mA 2.5 mA
Output Type Fixed Fixed Fixed Fixed
Series - - - -
Output Configuration Positive Positive Positive Positive
Base Product Number LP2985 LP2985 - LP2985
Voltage - Input (Max) 16V 16V 16V 16V

LP2985AIM5-5.0 Datasheet PDF

Download LP2985AIM5-5.0 pdf datasheets and Texas Instruments documentation for LP2985AIM5-5.0 - Texas Instruments.

PCN Assembly/Origin
2.73KHz.pdf
PCN Packaging
Pin One Dot 07/Jan/2019.pdf
PCN Design/Specification
Copper Wire Update 12/Aug/2015.pdf LP2985-N 04/Apr/2017.pdf
