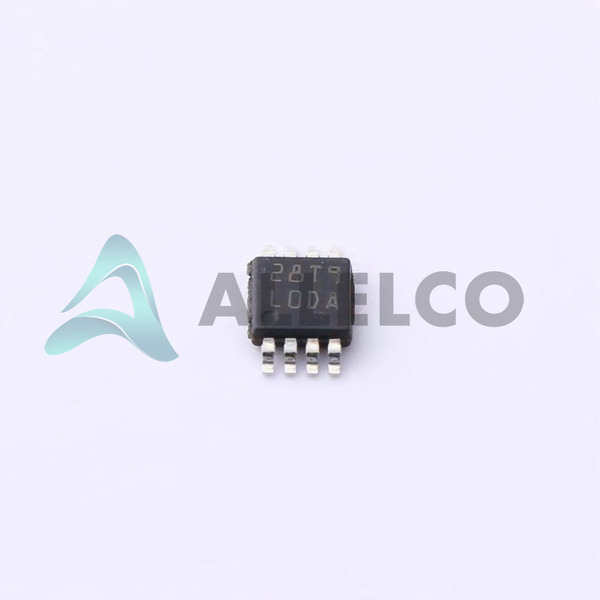

Manufacturer Part Number
LP2951ACMM
Manufacturer
Texas Instruments
Introduction
The LP2951ACMM is a low-dropout (LDO) linear voltage regulator capable of providing an adjustable output from a positive configuration.
Product Features and Performance
Adjustable output voltage between 1.235V and 29V
Maximum input voltage of 30V
Output current up to 100mA
Dropout voltage of 0.6V at 100mA load
Enable control feature for power management
Protection features against over current, over temperature, and short circuit
Product Advantages
High reliability under varying input conditions
Low quiescent current of 120µA promoting energy efficiency
Built-in thermal overload protection enhancing system safety
Compact 8-VSSOP package suitable for space-constrained applications
Key Technical Parameters
Voltage - Input (Max): 30V
Voltage - Output (Min/Fixed): 1.235V (5V)
Voltage - Output (Max): 29V
Voltage Dropout (Max): 0.6V @ 100mA
Current - Output: 100mA
Quiescent Current (Iq): 120 µA
Supply Current (Max): 14 mA
Quality and Safety Features
Over Current, Over Temperature, and Short Circuit Protection
Operating Temperature Range: -40°C to 125°C
Compatibility
Compatible with surface mount technology
Mounting Type: Surface Mount
Package / Case: 8-TSSOP, 8-MSOP (3.00mm Width)
Application Areas
Suitable for battery-powered devices, portable electronics, and low-power applications
Product Lifecycle
Status: Last Time Buy
Prepare for discontinuation with potential replacements or upgrades availability
Several Key Reasons to Choose This Product
High adaptability with adjustable output and wide input range
Enhanced safety due to comprehensive protective features
Low power consumption ideal for energy-sensitive applications
Compact form factor facilitating use in limited-space designs
Provides stable performance across a broad temperature range
