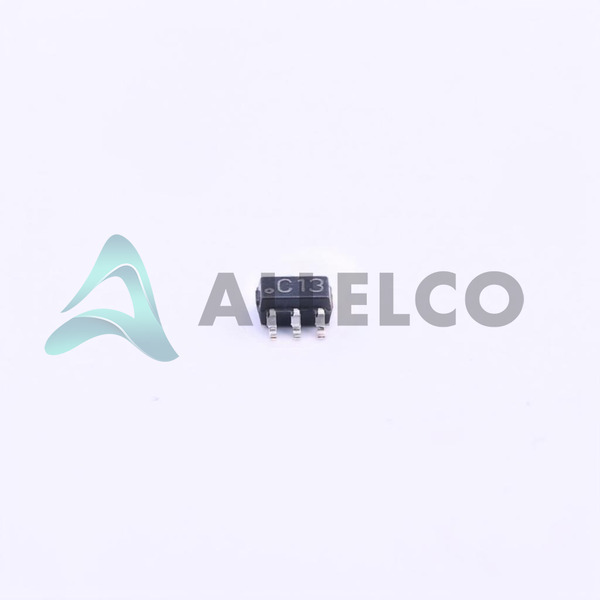

LMV331M7 - Texas Instruments

Manufacturer Part Number

LMV331M7

Manufacturer

Texas Instruments

Introduction

General Purpose Linear Comparator

Product Features and Performance

Single Element Configuration

CMOS, Open-Collector, TTL Compatible Output

Low Voltage Operation from 2.7V to 5.5V

Max Input Offset Voltage: 7mV @ 5V

Input Bias Current: 0.25µA @ 5V

Output Current: 84mA @ 5V

Quiescent Current: 120µA

Propagation Delay: Up to 600ns

Product Advantages

High Output Current Capability

Low Input Offset Voltage and Bias Current

Compatible with Multiple Logic Types

Low Power Consumption

Key Technical Parameters

Type: General Purpose

Number of Elements: 1

Voltage - Supply, Single/Dual (±): 2.7V ~ 5.5V

Current - Input Bias (Max): 0.25µA

Current - Output (Typ): 84mA

Current - Quiescent (Max): 120µA

Voltage - Input Offset (Max): 7mV

Propagation Delay (Max): 600ns

Operating Temperature Range: -40°C to 85°C

Quality and Safety Features

Operates Reliably in Temperature Range from -40°C to 85°C

Compatibility

Output Compatible with CMOS, Open-Collector, TTL Logic Levels

Application Areas

Signal Processing

Data Acquisition Systems

Communication Equipment

Consumer Electronics

Industrial Control

Product Lifecycle

Last Time Buy Status

Check for Replacement or Upgrade Options

Several Key Reasons to Choose This Product

Ensures system compatibility with versatile output types

Benefit from low power operation, extending battery life in portable devices

Offers reliability over a broad temperature range, suitable for demanding environments

Achieve rapid signal response times with acceptable propagation delay

Highly suited for integration in space-constrained applications due to small package size
