HomeProductsIntegrated Circuits (ICs)Linear - ComparatorsLMC7211BIM5

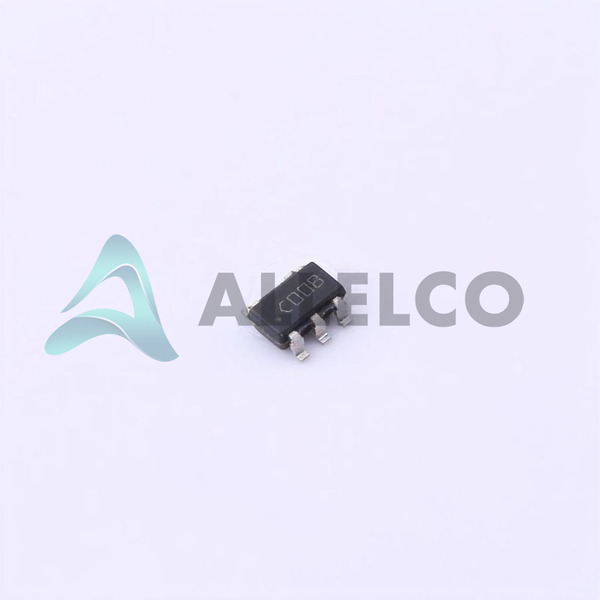

LMC7211BIM5 Image
Image may be representation.
See specifications for product details.
EXPRESS OPTION
Payment method

LMC7211BIM5 - Texas Instruments

Manufacturer Part Number
LMC7211BIM5
Manufacturer
Texas Instruments
Allelco Part Number
32D-LMC7211BIM5
ECAD Model
Parts Description
IC COMPARATOR 1 GEN PUR SOT23-5
Package
SC-74A, SOT-753
Data sheet
LMC7211.pdf
RoHs Status
ROHS3 Compliant
Our certification
In stock: 21635

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

LMC7211BIM5 Tech Specifications
Texas Instruments - LMC7211BIM5 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - LMC7211BIM5

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply, Single/Dual (±) 2.7V ~ 15V, ±1.35V ~ 7.5V
Voltage - Input Offset (Max) 15mV @ 5V
Type General Purpose
Supplier Device Package SOT-23-5
Series -
Propagation Delay (Max) 10µs
Package / Case SC-74A, SOT-753
Package Tape & Reel (TR)
Output Type Push-Pull
Product Attribute Attribute Value
Operating Temperature -40°C ~ 85°C
Number of Elements 1
Mounting Type Surface Mount
Hysteresis -
Current - Quiescent (Max) 14µA
Current - Output (Typ) 30mA
Current - Input Bias (Max) 0.04pA @ 5V
CMRR, PSRR (Typ) 75dB CMRR, 80dB PSRR
Base Product Number LMC7211

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001

Parts Introduction

Manufacturer Part Number

LMC7211BIM5

Manufacturer

Texas Instruments

Introduction

Low power, single comparator designed for general purpose applications

Product Features and Performance

Single comparator configuration

Push-pull output type ensures fast switching

Suitable for operation with a wide range of supply voltages

Ultra-low input bias current increases accuracy

High CMRR and PSRR enhance performance in noisy environments

Max propagation delay to support timing critical applications

Operational in a wide temperature range

Product Advantages

High output current capability for driving heavier loads

Low quiescent current for energy-efficient designs

Packaged in a small SOT-23-5 package for space-sensitive applications

Key Technical Parameters

Supply Voltage Range: 2.7V to 15V, dual supply ±1.35V to ±7.5V

Input Offset Voltage: Maximum 15mV at 5V

Input Bias Current: Maximum 0.04pA at 5V

Output Current: Typical 30mA

Quiescent Current: Maximum 14µA

Common Mode Rejection Ratio: Typically 75dB

Power Supply Rejection Ratio: Typically 80dB

Propagation Delay: Maximum 10µs

Operating Temperature Range: -40°C to 85°C

Quality and Safety Features

High reliability and industry-standard quality compliance

Robust performance with enhanced electrostatic discharge protection

Compatibility

Compatible with a wide range of supply voltages and input signals

Surface Mount technology for compatibility with modern PCB designs

Application Areas

Voltage monitoring

Window comparators

Level shifting

Battery operated systems

Portable devices

Data acquisition systems

Product Lifecycle

Last Time Buy status indicates the product is nearing end-of-life

Alternatives, replacements or upgrades should be considered

Several Key Reasons to Choose This Product

High precision with low input offset voltage and low bias current

Strength in noise rejection with high CMRR and PSRR

Efficient power usage, ideal for portable battery applications

Capability to drive loads directly with good output current

Flexible use across multiple supply voltages and systems

Compact size for space-constrained electronics

Enduring performance over a broad temperature range

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments LMC7211BIM5

Product Attribute LMC7211BIM5 LMC7215IM5 LMC7211BIMX LMC7211BIM
Part Number LMC7211BIM5 LMC7215IM5 LMC7211BIMX LMC7211BIM
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Output Type Push-Pull Push-Pull Push-Pull Push-Pull
Voltage - Input Offset (Max) 15mV @ 5V 6mV @ 5V 15mV @ 5V 15mV @ 5V
Propagation Delay (Max) 10µs 24µs 10µs 10µs
Current - Output (Typ) 30mA 30mA 30mA 30mA
Current - Quiescent (Max) 14µA 1µA 14µA 14µA
Supplier Device Package SOT-23-5 SOT-23-5 8-SOIC 8-SOIC
Package / Case SC-74A, SOT-753 SC-74A, SOT-753 8-SOIC (0.154', 3.90mm Width) 8-SOIC (0.154", 3.90mm Width)
Type General Purpose General Purpose General Purpose General Purpose
Current - Input Bias (Max) 0.04pA @ 5V - 0.04pA @ 5V 0.04pA @ 5V
Voltage - Supply, Single/Dual (±) 2.7V ~ 15V, ±1.35V ~ 7.5V 2V ~ 8V, ±1V ~ 4V 2.7V ~ 15V, ±1.35V ~ 7.5V 2.7V ~ 15V, ±1.35V ~ 7.5V
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tube
CMRR, PSRR (Typ) 75dB CMRR, 80dB PSRR 80dB CMRR, 90dB PSRR 75dB CMRR, 80dB PSRR 75dB CMRR, 80dB PSRR
Hysteresis - - - -
Series - - - -
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Base Product Number LMC7211 LMC7215 LMC7211 LMC7211
Number of Elements 1 1 1 1
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount

LMC7211BIM5 Datasheet PDF

Download LMC7211BIM5 pdf datasheets and Texas Instruments documentation for LMC7211BIM5 - Texas Instruments.

HTML Datasheet
LMC7211.pdf
