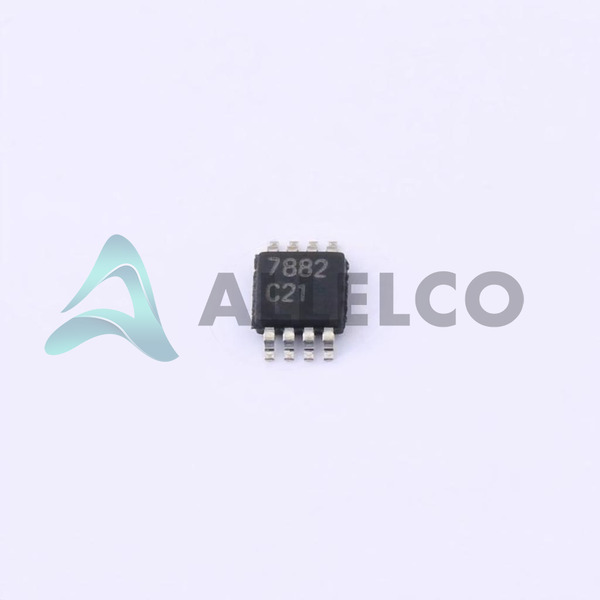

LMC6772AIMM - Texas Instruments

Manufacturer Part Number

LMC6772AIMM

Manufacturer

Texas Instruments

Introduction

Precision dual linear comparator designed for general purpose applications

Product Features and Performance

General purpose comparator

Dual element design

Open-drain output

Supports wide voltage supply range

Low input offset voltage

Ultra-low input bias current

Moderate output current capacity

Excellent CMRR and PSRR

Fast propagation delay

Product Advantages

High precision due to low input offset voltage and bias current

Suitable for battery-powered applications due to low quiescent current

Good common-mode rejection ratio ensures stability against input disturbances

Power supply rejection ratio helps maintain performance despite supply variations

Simple to use with open-drain output for flexibility in complex circuits

Key Technical Parameters

Number of Elements: 2

Voltage - Supply, Single/Dual (±): 2.7V ~ 15V, ±1.35V ~ 7.5V

Voltage - Input Offset (Max): 5mV @ 5V

Current - Input Bias (Max): 0.04pA @ 5V

Current - Output (Typ): 30mA

Current - Quiescent (Max): 20µA

CMRR, PSRR (Typ): 75dB CMRR, 80dB PSRR

Propagation Delay (Max): 10µs

Operating Temperature: -40°C ~ 85°C

Quality and Safety Features

Operates reliably in a wide temperature range

Industry-standard quality and safety compliance

Compatibility

Compatible with a wide range of supply voltages

Surface mountable with 8-VSSOP device package

Open-drain output provides compatibility with multiple logic levels

Application Areas

Telecommunications

Data acquisition systems

Control systems

Power supplies

Automotive electronics

Product Lifecycle

Obsolete

Consult Texas Instruments for replacement or upgrade options

Several Key Reasons to Choose This Product

High precision for sensitive applications

Low power consumption suitable for portable devices

Reliable performance in diverse conditions

Ease of use in complex circuit designs

Strong support and documentation from Texas Instruments
