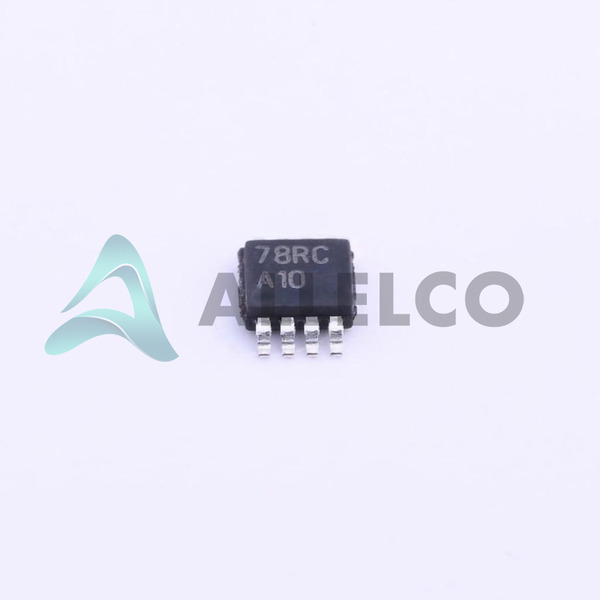

LMC6482IMMX - Texas Instruments

Manufacturer Part Number

LMC6482IMMX

Manufacturer

Texas Instruments

Introduction

Integrated Circuit (IC) amplifier

Designed for instrumentation, operational amplifier, and buffer amplifier applications

Product Features and Performance

Rail-to-rail output

Low-noise, low-input bias current CMOS operational amplifier

Dual-channel design

High gain bandwidth of 1.5 MHz

Wide supply voltage range of 3V to 15.5V

Low supply current of 1.3mA per channel

Fast slew rate of 1.3 V/μs

Low input offset voltage of 110 μV

Product Advantages

Suitable for a wide range of applications due to high performance and versatile features

Efficient dual-channel design saves board space

Low power consumption and heat dissipation

Key Technical Parameters

Package: 8-VSSOP

Number of Circuits: 2

Gain Bandwidth Product: 1.5 MHz

Supply Voltage Range: 3V to 15.5V

Supply Current: 1.3mA per channel

Slew Rate: 1.3 V/μs

Input Offset Voltage: 110 μV

Amplifier Type: CMOS

Output Current: 30 mA per channel

Input Bias Current: 0.02 pA

Quality and Safety Features

RoHS3 compliant

Designed for reliable and consistent performance

Compatibility

Compatible with a wide range of electronic systems and circuits

Application Areas

Instrumentation

Operational amplifier

Buffer amplifier

General-purpose amplifier applications

Product Lifecycle

Current production

Replacements and upgrades available if needed

Several Key Reasons to Choose This Product

High performance with rail-to-rail output, high bandwidth, low noise, and low power

Versatile dual-channel design saves board space

Reliable and consistent quality with RoHS3 compliance

Suitable for a wide range of amplifier applications
