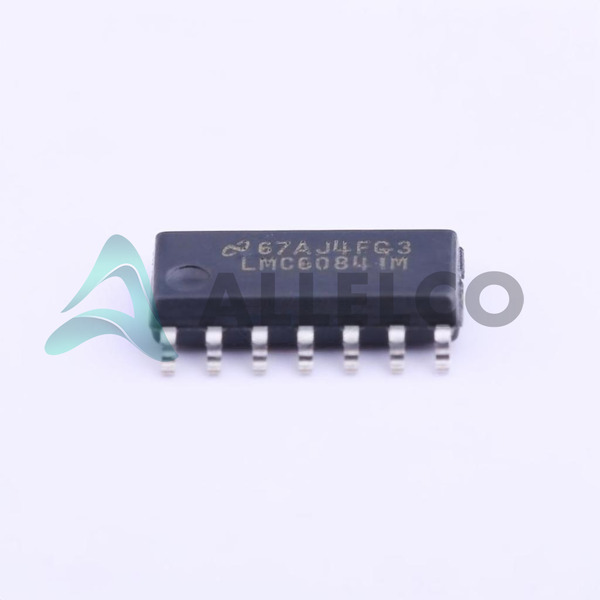

Manufacturer Part Number
LMC6084IMX
Manufacturer
Texas Instruments
Introduction
General-purpose amplifier with 4 circuits
Product Features and Performance
Rail-to-rail output
Wide supply voltage range: 4.5V to 15.5V (single-supply) or ±2.25V to ±7.75V (dual-supply)
Low input bias current: 0.01pA
High gain bandwidth product: 1.3MHz
Slew rate: 1.5V/μs
Output current per channel: 34mA
Operating temperature range: -40°C to 85°C
Product Advantages
Versatile general-purpose amplifier
Capable of rail-to-rail operation
Wide supply voltage range
Low input bias current
Key Technical Parameters
Manufacturer Part Number: LMC6084IMX
Package: 14-SOIC (0.154", 3.90mm Width)
Number of Circuits: 4
Gain Bandwidth Product: 1.3MHz
Supply Current: 2.2mA
Slew Rate: 1.5V/μs
Input Offset Voltage: 150μV
Amplifier Type: General Purpose
Output Current per Channel: 34mA
Input Bias Current: 0.01pA
Supply Voltage: 4.5V to 15.5V (single-supply) or ±2.25V to ±7.75V (dual-supply)
Quality and Safety Features
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Contains lead / RoHS non-compliant
Compatibility
Surface mount (14-SOIC) package
Application Areas
Suitable for a wide range of general-purpose amplifier applications
Product Lifecycle
This product is an active and available part from Texas Instruments.
Several Key Reasons to Choose This Product
Versatile general-purpose amplifier with rail-to-rail output
Wide supply voltage range for diverse applications
Low input bias current for high-impedance circuits
High gain bandwidth product and fast slew rate for dynamic performance
Capable of delivering up to 34mA of output current per channel
