Manufacturer Part Number

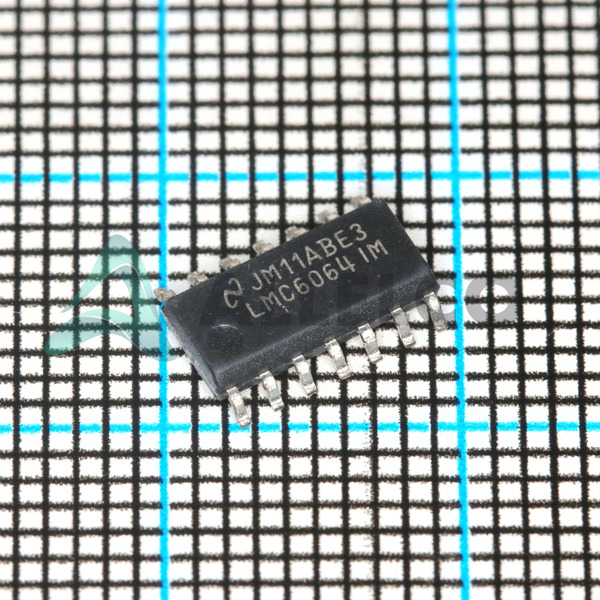

LMC6064IMX
Manufacturer
Texas Instruments
Introduction
Quad Operational Amplifier
High Performance CMOS Operational Amplifier
Product Features and Performance
Rail-to-Rail Input and Output
Low Offset Voltage: 100 µV
Low Input Bias Current: 0.01 pA
High Gain Bandwidth Product: 100 kHz
High Slew Rate: 0.035 V/µs
Wide Supply Voltage Range: 4.5 V to 15.5 V
Quad (4) Operational Amplifiers in a Single Package
Product Advantages
Excellent DC Performance
High Precision
Low Power Consumption
Wide Operating Temperature Range: -40°C to 85°C
Key Technical Parameters
Supply Voltage Range: 4.5 V to 15.5 V
Offset Voltage: 100 μV
Input Bias Current: 0.01 pA
Gain Bandwidth Product: 100 kHz
Slew Rate: 0.035 V/µs
Output Current per Channel: 26 mA
Quality and Safety Features
RoHS Non-Compliant
14-SOIC Package
Compatibility
Suitable for a wide range of instrumentation, measurement, and control applications
Application Areas
Precision Analog Circuits
Instrumentation Amplifiers
High Impedance Buffers
Sample-and-Hold Circuits
Sensor Signal Conditioning
Active Filters
Product Lifecycle
Currently available
No plans for discontinuation
Key Reasons to Choose This Product
Excellent DC performance with low offset voltage and bias current
High gain bandwidth and slew rate for precision analog applications
Wide supply voltage range and operating temperature support
Quad operational amplifier configuration for space-saving design
Reliable and proven CMOS technology from Texas Instruments
