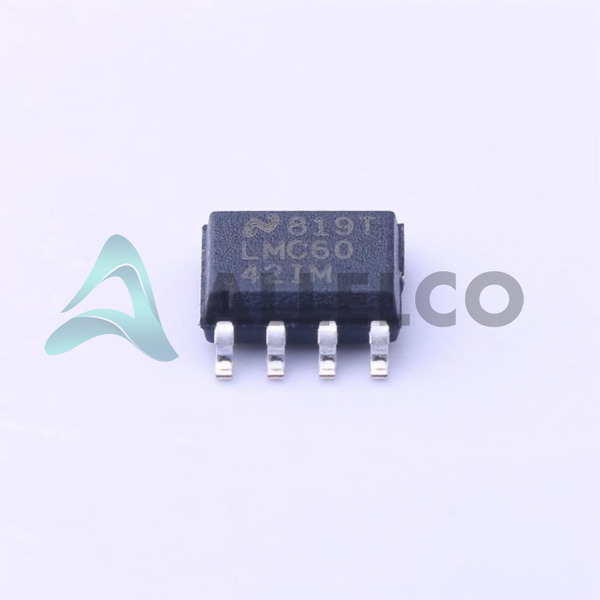

LMC6042IMX - Texas Instruments

Manufacturer Part Number

LMC6042IMX

Manufacturer

Texas Instruments

Introduction

Integrated circuit amplifier

Dual CMOS operational amplifier

Product Features and Performance

Dual operational amplifier

Push-pull, rail-to-rail output

Wide supply voltage range: 4.5V to 15.5V

High input impedance: 1012Ω

Low input bias current: 0.002pA

Low input offset voltage: 1mV

Gain bandwidth product: 100kHz

Slew rate: 0.02V/μs

Wide operating temperature range: -40°C to 85°C

Product Advantages

Versatile dual op-amp design

High precision and performance

Low power consumption

Compact surface mount package

Key Technical Parameters

Package: 8-SOIC (0.154", 3.90mm Width)

Mounting Type: Surface Mount

Number of Circuits: 2

Amplifier Type: CMOS

Supply Current: 26μA per channel

Output Current: 40mA per channel

Quality and Safety Features

RoHS non-compliant

Compatibility

Compatible with a wide range of electronic circuits and systems

Application Areas

Instrumentation and measurement applications

Buffer amplifiers

Signal conditioning circuits

Low-power amplifier circuits

Product Lifecycle

This is an existing product, not nearing discontinuation

Replacement or upgrade options may be available from the manufacturer

Several Key Reasons to Choose This Product

Dual op-amp design for versatile applications

Wide supply voltage range and low power consumption

High precision and performance characteristics

Compact surface mount package for efficient board layout

Reliable and well-established product from a trusted manufacturer
