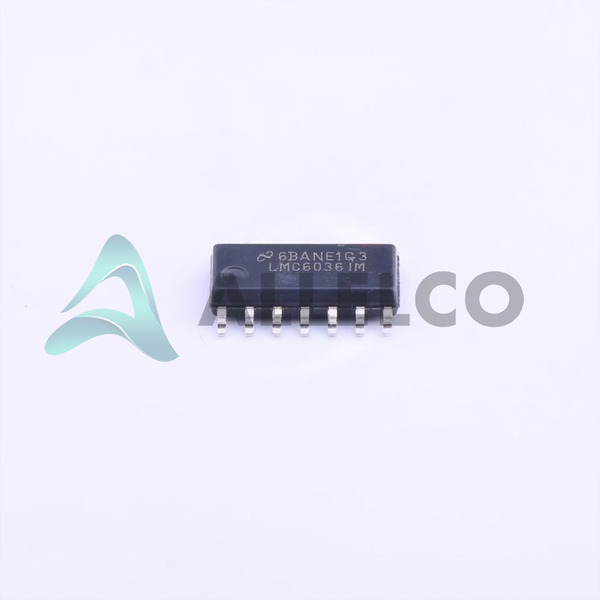

LMC6036IMX - Texas Instruments

Manufacturer Part Number
LMC6036IMX
Manufacturer
Texas Instruments
Allelco Part Number
32D-LMC6036IMX
ECAD Model
Parts Description
IC CMOS 4 CIRCUIT 14SOIC
Detailed Description
Package
14-SOIC (0.154", 3.90mm Width)
Data sheet
LMC6036IMX.pdf
Compare
In stock: 35382

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

LMC6036IMX Tech Specifications
Texas Instruments - LMC6036IMX technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - LMC6036IMX

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply Span (Min) 2 V
Voltage - Supply Span (Max) 15.5 V
Voltage - Input Offset 500 µV
Supplier Device Package 14-SOIC
Slew Rate 1.5V/µs
Series Automotive, AEC-Q100
Package / Case 14-SOIC (0.154", 3.90mm Width)
Package Bulk
Product Attribute Attribute Value
Output Type Differential, Rail-to-Rail
Operating Temperature -40°C ~ 85°C
Number of Circuits 4
Mounting Type Surface Mount
Gain Bandwidth Product 1.4 MHz
Current - Supply 1.3mA (x4 Channels)
Current - Output / Channel 8 mA
Current - Input Bias 0.02 pA
Amplifier Type CMOS

Parts Introduction

Manufacturer Part Number

LMC6036IMX

Manufacturer

Texas Instruments

Introduction

Quad operational amplifier (op-amp) integrated circuit (IC)

Designed for general-purpose, low-power instrumentation and control applications

Product Features and Performance

4 independent op-amp channels

Rail-to-rail output

Wide supply voltage range of 2V to 15.5V

Low input bias current of 0.02pA

High gain bandwidth product of 1.4MHz

Slew rate of 1.5V/us

Low input offset voltage of 500uV

Wide operating temperature range of -40°C to 85°C

Product Advantages

Suitable for low-power, battery-powered applications

Excellent DC and AC performance

Robust and reliable design

Key Technical Parameters

Package: 14-SOIC (0.154", 3.90mm Width)

Mounting Type: Surface Mount

Series: Automotive, AEC-Q100 qualified

RoHS: Non-compliant

Quality and Safety Features

Automotive-grade quality and reliability

AEC-Q100 qualified

Compatibility

Suitable for general-purpose, low-power instrumentation and control applications

Application Areas

Industrial control systems

Portable and battery-powered equipment

Sensor signal conditioning

Instrumentation and test equipment

Product Lifecycle

Current product offering, no discontinuation plans

Key Reasons to Choose This Product

Excellent DC and AC performance for instrumentation and control applications

Wide supply voltage range and low power consumption for battery-powered designs

Robust and reliable automotive-grade quality

Automotive AEC-Q100 qualification for harsh environment applications

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments LMC6036IMX

Product Attribute LMC6036IMX LMC6041AIMX LMC6041IMX LMC6041IN
Part Number LMC6036IMX LMC6041AIMX LMC6041IMX LMC6041IN
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Series Automotive, AEC-Q100 - - -
Slew Rate 1.5V/µs 0.02 V/µs 0.02V/µs 0.02 V/µs
Supplier Device Package 14-SOIC 8-SOIC 8-SOIC 8-PDIP
Package Bulk - Tape & Reel (TR) -
Package / Case 14-SOIC (0.154", 3.90mm Width) 8-SOIC (0.154", 3.90mm Width) 8-SOIC (0.154", 3.90mm Width) 8-DIP (0.300", 7.62mm)
Voltage - Supply Span (Min) 2 V - 4.5 V -
Current - Output / Channel 8 mA 40mA 40 mA 40mA
Current - Supply 1.3mA (x4 Channels) 18µA 18µA 18µA
Mounting Type Surface Mount Surface Mount Surface Mount Through Hole
Number of Circuits 4 1 1 1
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Output Type Differential, Rail-to-Rail Rail-to-Rail Rail-to-Rail Rail-to-Rail
Voltage - Input Offset 500 µV 1mV 1 mV 1mV
Gain Bandwidth Product 1.4 MHz 75kHz 75 kHz 75kHz
Voltage - Supply Span (Max) 15.5 V - 15.5 V -
Current - Input Bias 0.02 pA 0.002pA 0.002 pA 0.002pA
Amplifier Type CMOS General Purpose General Purpose General Purpose
