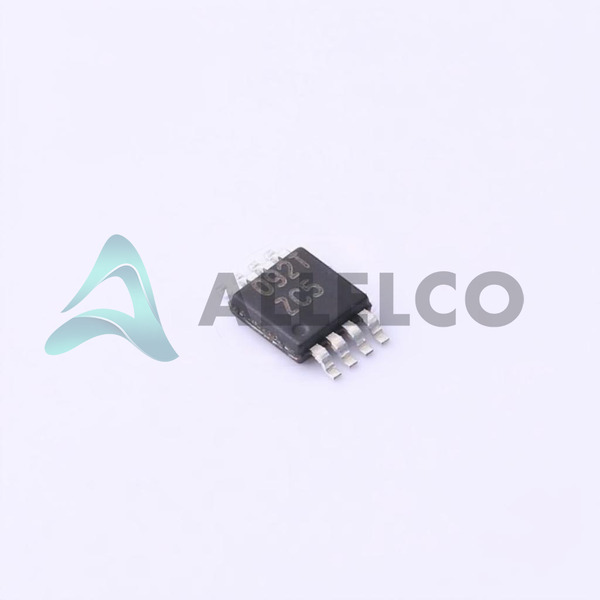

LMC555CMM - Texas Instruments

Manufacturer Part Number

LMC555CMM

Manufacturer

Texas Instruments

Introduction

Low power single timer/oscillator integrated circuit suitable for timing and oscillation applications.

Product Features and Performance

High frequency operation up to 3MHz

Wide voltage supply range from 1.5V to 15V

Low supply current of 150 µA, ensuring energy efficiency

Operational temperature range from -40°C to 85°C

Small package form factor: 8-TSSOP, 8-MSOP

Product Advantages

Great for battery-powered applications due to low power consumption

Capable of functioning in a broad range of environmental conditions

Flexible voltage compatibility allows for use in diverse electrical circuits

Key Technical Parameters

Frequency: 3MHz

Voltage - Supply: 1.5V ~ 15V

Current - Supply: 150 µA

Operating Temperature: -40°C ~ 85°C

Quality and Safety Features

High reliability with extended operating temperature range

Compliance with industry standards for safety and quality

Compatibility

Compatible with various timing and oscillator circuits that require 555 timer-type ICs

Mountable on various PCBs due to its surface mount design

Application Areas

Consumer electronics

Industrial controls

Precision timing devices

Pulse generation applications

Product Lifecycle

Last Time Buy status indicates nearing discontinuation

Replacements or upgrades should be considered for future applications

Key Reasons to Choose This Product

High frequency precision with a maximum of 3MHz operation

Energy-efficient design with low supply current requirement

Versatile use with a wide 1.5V to 15V voltage supply range

Reduced size with 8-TSSOP, 8-MSOP packaging, suitable for space-constrained applications

Robust performance under varying environmental conditions, from -40°C to 85°C

Texas Instruments' reputation for quality and reliable components
