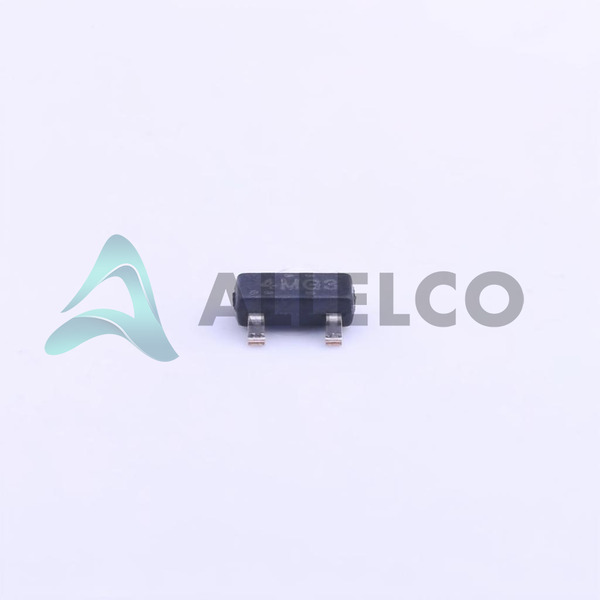

LM4041BIDBZR - Texas Instruments

Manufacturer Part Number

LM4041BIDBZR

Manufacturer

Texas Instruments

Introduction

The LM4041BIDBZR is a precision, shunt voltage reference that provides adjustable output from 1.233V to 10V and is suitable for various power management applications.

Product Features and Performance

Adjustable output voltage ranging from 1.233V to 10V

Stable shunt reference type

Output current capability of 12 mA

High precision with a tolerance of ±0.2%

Low temperature coefficient of 100ppm/°C

Output noise of 20µVrms from 10Hz to 10kHz

Rated for operation from -40°C to 85°C

Surface mount package, utilizing SOT-23-3 format

Product Advantages

Highly accurate and stable voltage output

Adjustable output for increased flexibility in applications

Compact and robust surface mount package

Suitable for harsh temperature environments

Key Technical Parameters

Voltage Output (Min/Fixed): 1.233V

Voltage Output (Max): 10 V

Current Output: 12 mA

Tolerance: ±0.2%

Temperature Coefficient: 100ppm/°C

Operating Temperature: -40°C to 85°C

Noise 10Hz to 10kHz: 20µVrms

Mounting Type: Surface Mount

Package / Case: SOT-23-3

Quality and Safety Features

Rigorous tolerance and temperature specification ensures reliability

Robust construction suitable for industrial applications

Compatibility

Designed for use in electronic systems requiring precise voltage reference in a compact SOT-23-3 package format.

Application Areas

Power supply monitoring

Battery-powered devices

Data acquisition systems

Portable and wearable technology

Medical and healthcare systems

Product Lifecycle

Currently active with ongoing availability

No current plans for discontinuation, ensuring long-term availability and support

Several Key Reasons to Choose This Product

Versatile adjustable voltage output suitable for diverse applications

High precision and low thermal drift improve system accuracy

Low noise output enhances system performance in sensitive applications

Reliable operation in wide temperature ranges

Compact and durable packaging suitable for space-constrained applications
