Manufacturer Part Number
ISO7762FDBQ
Manufacturer
Texas Instruments
Introduction
Isolated digital signal transmission device
Provides high-speed, high-reliability isolation between digital circuits
Product Features and Performance
6-channel digital isolator
High-speed operation up to 100 Mbps data rate
Fast propagation delay (max 16 ns)
Low pulse width distortion (max 4.9 ns)
Wide operating temperature range (-55°C to 125°C)
High common-mode transient immunity (min 85 kV/s)
Product Advantages
Provides reliable isolation between digital circuits
Enables high-speed data transmission
Robust performance over wide temperature range

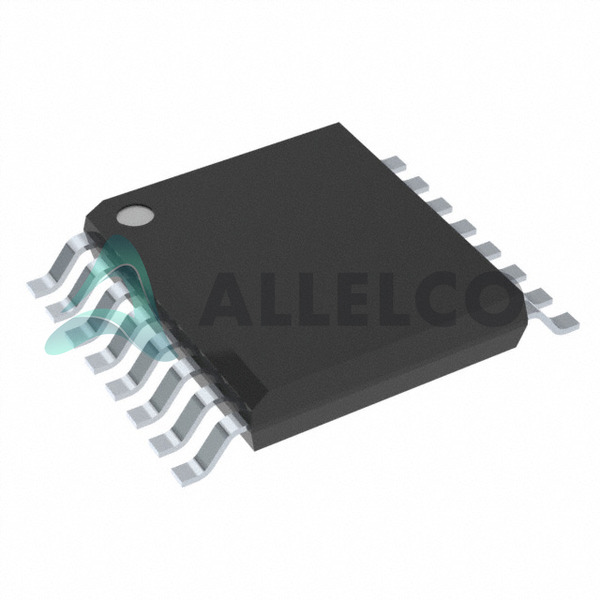

Compact 16-SSOP package
Key Technical Parameters
Voltage isolation: 3000 Vrms
Supply voltage: 2.25 V to 5.5 V
Unidirectional channel type
Quality and Safety Features
RoHS3 compliant
Suitable for safety-critical applications
Compatibility
Compatible with a wide range of digital circuits
Application Areas
Industrial automation
Motor control
Power conversion
Medical equipment
Product Lifecycle
Currently in production
Replacements and upgrades available
Key Reasons to Choose This Product
High-speed, reliable isolation for digital circuits
Robust performance over wide temperature range
Compact and space-efficient package
Compliance with safety and environmental standards
