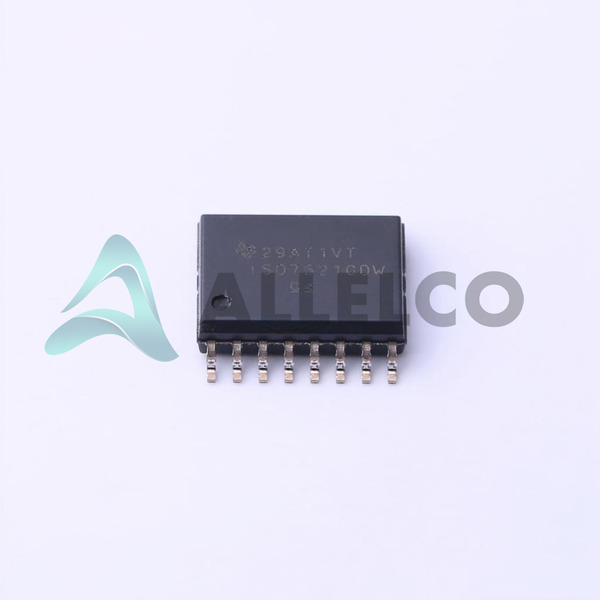

ISO7521CDWR - Texas Instruments

Manufacturer Part Number

ISO7521CDWR

Manufacturer

Texas Instruments

Introduction

Digital Isolator

Provides galvanic isolation between two digital systems

Product Features and Performance

2 channels

Rise/Fall Time: 1ns

Propagation Delay: 14ns max

Pulse Width Distortion: 3.7ns max

Common Mode Transient Immunity: 25kV/s min

Data Rate: 1Mbps

Voltage Supply: 3.15V 3.45V, 4.75V 5.25V

Unidirectional channel type

Capacitive coupling technology

Product Advantages

Reliable galvanic isolation

Fast switching speed

Low propagation delay

High common mode transient immunity

Wide supply voltage range

Key Technical Parameters

Operating Temperature: -40°C to 105°C

Isolation Voltage: 4243Vrms

Package: 16-SOIC (0.295", 7.50mm Width)

Mounting Type: Surface Mount

Quality and Safety Features

RoHS3 compliant

Compatibility

Compatible with various digital systems that require galvanic isolation

Application Areas

Industrial automation

Motor control

Power supplies

Medical equipment

General purpose digital isolation

Product Lifecycle

Currently available

No information on discontinuation or upgrades

Key Reasons to Choose This Product

Reliable galvanic isolation between digital systems

High-speed performance with fast rise/fall time and low propagation delay

Wide supply voltage range for flexibility in system design

High common mode transient immunity for robust operation

RoHS3 compliance for environmental considerations

Surface mount package for easy integration into circuits
