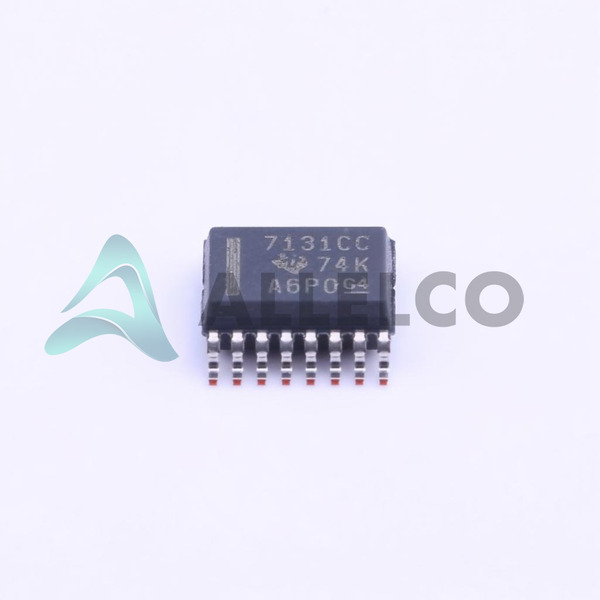

ISO7131CCDBQ - Texas Instruments

Manufacturer Part Number

ISO7131CCDBQ

Manufacturer

Texas Instruments

Introduction

Digital isolator with 3 unidirectional channels for high-speed data transmission and signal isolation.

Product Features and Performance

3 unidirectional channels

High-speed data transmission up to 50Mbps

Propagation delay of 35ns max

Pulse width distortion of 3ns max

Capacitive coupling technology for isolation

Common mode transient immunity of 25kV/s min

Product Advantages

Compact 16-SSOP package

Wide operating temperature range of -40°C to 125°C

RoHS3 compliant

Key Technical Parameters

Voltage isolation: 2500Vrms

Voltage supply: 2.7V to 5.5V

Rise/fall time: 2ns typical

Quality and Safety Features

ROHS3 compliant

Suitable for safety-critical applications

Compatibility

Surface mount package

Compatible with a wide range of electronic systems

Application Areas

Industrial automation

Motor control

Power conversion

Safety-critical systems

Product Lifecycle

Current product, no discontinuation planned

Replacement options available if needed

Key Reasons to Choose This Product

High-speed data isolation with low propagation delay

Robust capacitive coupling technology

Wide operating temperature range

Compact and efficient package

RoHS3 compliance for environmental friendliness
