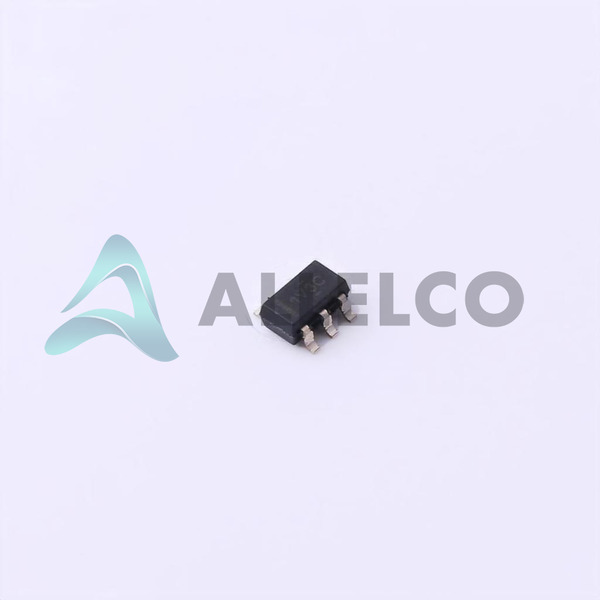

INA293A4QDBVRQ1 Tech Specifications
Texas Instruments - INA293A4QDBVRQ1 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - INA293A4QDBVRQ1

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Supply Span (Min)	2.7 V
Voltage - Supply Span (Max)	20 V
Voltage - Input Offset	5 µV
Supplier Device Package	SOT-23-5
Slew Rate	2.5V/µs
Series	Automotive, AEC-Q100
Package / Case	SC-74A, SOT-753
Package	Tape & Reel (TR)

Product Attribute	Attribute Value
Output Type	-
Operating Temperature	-40°C ~ 125°C (TA)
Number of Circuits	1
Mounting Type	Surface Mount
Current - Supply	1.5mA
Current - Input Bias	20 µA
Base Product Number	INA293
Amplifier Type	Current Sense
-3db Bandwidth	900 kHz

Parts Introduction

Manufacturer Part Number

INA293A4QDBVRQ1

Manufacturer

Texas Instruments

Introduction

The INA293 is a high-precision, low-noise current sense amplifier designed for automotive and industrial applications. It features a wide supply voltage range, low input offset voltage, and high bandwidth, making it suitable for a variety of current sensing and monitoring applications.

Product Features and Performance

Wide supply voltage range of 2.7V to 20V

Low input offset voltage of 5μV

High bandwidth of 900kHz

Low supply current of 1.5mA

Slew rate of 2.5V/μs

Input bias current of 20μA

AEC-Q100 qualified for automotive applications

Product Advantages

Excellent precision and accuracy for current sensing

High bandwidth enables fast response times

Wide operating temperature range of -40°C to 125°C

Small, space-saving SOT-23-5 package

Automotive-grade and AEC-Q100 qualified

Key Technical Parameters

Supply voltage range: 2.7V to 20V

Input offset voltage: 5μV

Bandwidth: 900kHz

Supply current: 1.5mA

Slew rate: 2.5V/μs

Input bias current: 20μA

Operating temperature range: -40°C to 125°C

Quality and Safety Features

RoHS3 compliant

AEC-Q100 qualified for automotive applications

Compatibility

Surface mount, SOT-23-5 package

Tape and reel packaging

Application Areas

Automotive electronics

Industrial control systems

Power management

Current monitoring and protection circuits

Product Lifecycle

The INA293 is an actively supported product in Texas Instruments' portfolio. There are no plans for discontinuation, and replacement or upgrade options are available if needed.

Key Reasons to Choose This Product

High precision and accuracy for current sensing

Wide bandwidth and fast response time

Wide operating temperature range

Low power consumption

Small, space-saving package

Automotive-grade and AEC-Q100 qualified

Extensive application support and availability from Texas Instruments

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments INA293A4QDBVRQ1

Product Attribute
Part Number	INA293A4QDBVRQ1	INA293B1IDBVR	INA293A5IDBVR	INA293A2QDBVRQ1
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Current - Supply	1.5mA	1.5mA	1.5mA	1.5mA
Output Type	-	-	-	-
Base Product Number	INA293	INA293	INA293	INA293
Number of Circuits	1	1	1	1
Voltage - Supply Span (Min)	2.7 V	2.7 V	2.7 V	2.7 V
Amplifier Type	Current Sense	Current Sense	Current Sense	Current Sense
Package / Case	SC-74A, SOT-753	SC-74A, SOT-753	SC-74A, SOT-753	SC-74A, SOT-753
Voltage - Supply Span (Max)	20 V	20 V	20 V	20 V
Slew Rate	2.5V/µs	2.5V/µs	2.5V/µs	2.5V/µs
Package	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
-3db Bandwidth	900 kHz	1.3 MHz	900 kHz	1.3 MHz
Voltage - Input Offset	5 µV	30 µV	2 µV	15 µV
Current - Input Bias	20 µA	20 µA	20 µA	20 µA
Supplier Device Package	SOT-23-5	SOT-23-5	SOT-23-5	SOT-23-5
Series	Automotive, AEC-Q100	-	-	Automotive, AEC-Q100
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Operating Temperature	-40°C ~ 125°C (TA)	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C (TA)

INA293A4QDBVRQ1 Datasheet PDF

Download INA293A4QDBVRQ1 pdf datasheets and Texas Instruments documentation for INA293A4QDBVRQ1 - Texas Instruments.

Datasheets: INA293-Q1.pdf
PCN Design/Specification: INA293-Q1 19/Aug/2022.pdf
