INA181A1IDBVT - Texas Instruments

Manufacturer Part Number

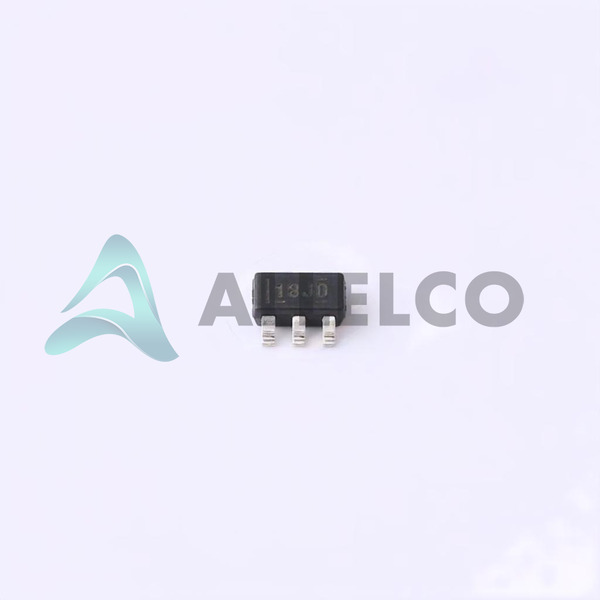

INA181A1IDBVT

Manufacturer

Texas Instruments

Introduction

The INA181A1IDBVT is a high-performance, low-power current sense amplifier from Texas Instruments. It is designed for a variety of industrial and consumer applications that require precise current monitoring and control.

Product Features and Performance

Rail-to-rail output

Wide supply voltage range of 2.7V to 5.5V

Low input offset voltage of 100μV

Low input bias current of 75μA

High bandwidth of 350kHz

Fast slew rate of 2V/μs

Wide operating temperature range of -40°C to 125°C

Product Advantages

Excellent accuracy for current sensing

High-speed performance for dynamic current monitoring

Low power consumption for energy-efficient designs

Compact SOT-23-6 package for space-constrained applications

Key Technical Parameters

Supply voltage range: 2.7V to 5.5V

Input offset voltage: 100μV

Input bias current: 75μA

Bandwidth: 350kHz

Slew rate: 2V/μs

Operating temperature range: -40°C to 125°C

Quality and Safety Features

RoHS3 compliant

Reliable and durable in industrial and harsh environments

Compatibility

Compatible with a wide range of industrial and consumer applications that require precise current sensing and monitoring

Application Areas

Industrial automation and control systems

Power supplies and battery management

Motor control and servo systems

Test and measurement equipment

Consumer electronics and portable devices

Product Lifecycle

The INA181A1IDBVT is an active and widely available product from Texas Instruments.

There are no immediate plans for discontinuation, and replacement or upgrade options are readily available.

Several Key Reasons to Choose This Product

Excellent accuracy and high-speed performance for dynamic current monitoring

Low power consumption and wide operating temperature range for energy-efficient and reliable designs

Compact and space-saving SOT-23-6 package for easy integration into various applications

Proven reliability and compatibility with a wide range of industrial and consumer applications

Readily available from Texas Instruments with ongoing support and product lifecycle management
