Manufacturer Part Number

ESD401DPYR

Manufacturer

Texas Instruments

Introduction

ESD401DPYR is a Transient Voltage Suppressor Diode, designed for protecting circuits from voltage spikes.

Product Features and Performance

Single channel, bi-directional TVS diode

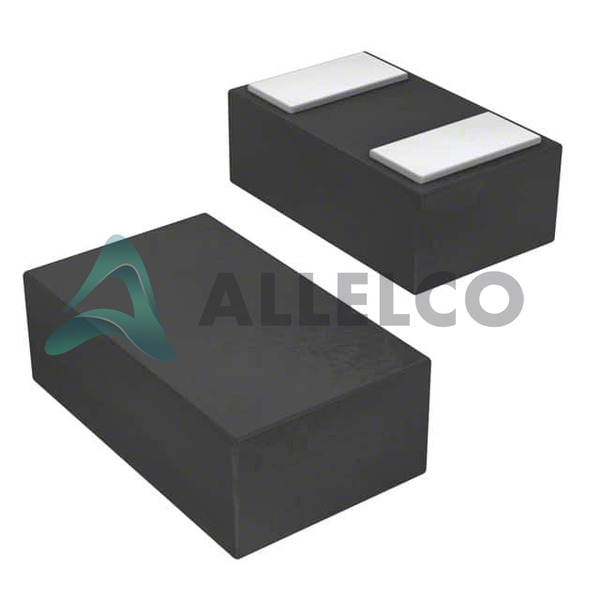

Surface mount device with a package size of 0402 (1006 Metric)

Operating temperature ranges from -40°C to 125°C

Clamping voltage is a maximum of 24V at typical peak pulse current

Product Advantages

Offers efficient protection against voltage transients

Compact and easy to integrate into various circuit designs

High power peak pulse capability of 67W

Key Technical Parameters

Voltage Reverse Standoff (Typ): 5.5V (Max)

Voltage Breakdown (Min): 7.5V

Current Peak Pulse (10/1000µs): 4.5A (8/20µs)

Power Peak Pulse: 67W

Quality and Safety Features

Robust build quality adhering to stringent safety standards

Effective in variable environmental conditions from -40°C to 125°C

Compatibility

General-purpose use in various electronic applications

Application Areas

Can be integrated into a wide range of general electronic applications

Product Lifecycle

Currently active with no indication of discontinuation

Future replacements or upgrades are likely to be available

Several Key Reasons to Choose This Product

Optimal protection against voltage spikes and surges

High reliability and durability in extreme temperature conditions

Compact size suitable for minimal space applications

The ability to handle significant power during transient conditions
