Manufacturer Part Number

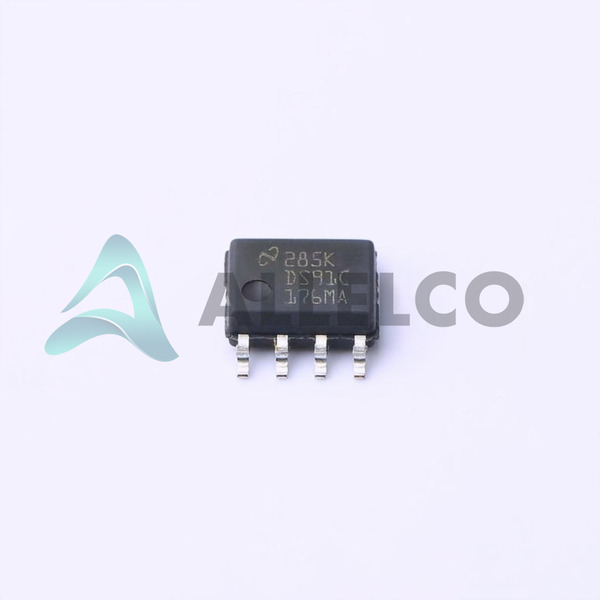

DS91C176TMAX
Manufacturer
Texas Instruments
Introduction
The DS91C176TMAX is a high-performance LVDS transceiver designed for high-speed data transmission.
Product Features and Performance
LVDS transceiver with high data rate support
Supports data rates up to 200Mbps
Utilizes Low Voltage Differential Signaling (LVDS) for reduced power consumption and high noise immunity
Operates with a supply voltage from 3V to 3.6V
Suitable for operation in a temperature range of -40°C to 85°C
Surface Mount Technology (SMT) for ease of board design and space-saving
Product Advantages
High data transmission speed facilitates faster communications
Reduced power consumption for energy-efficient designs
High noise immunity enhances signal quality
Broad operating temperature range makes it suitable for industrial applications
Key Technical Parameters
Protocol: LVDS
Number of Drivers/Receivers: 1/1
Duplex: Half
Data Rate: 200Mbps
Voltage Supply: 3V ~ 3.6V
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Quality and Safety Features
Built to high Texas Instruments standards for reliability and performance
Consistent quality for industrial-grade applications
Compatibility
LVDS protocol compatibility for versatile use in digital communication systems
Application Areas
High-speed data communication in computing
Telecommunications equipment
Industrial control systems
Automotive electronics
Networking hardware
Product Lifecycle
Obsolete status indicates the product is no longer in production
Users should seek replacements or upgrades for future designs
Several Key Reasons to Choose This Product
High-speed LVDS data transmission capability enhances system performance
Low power consumption aids in designing energy-efficient systems
Robust noise immunity improves signal integrity in noisy environments
Versatility of application across multiple industries
Proven quality and reliability from Texas Instruments
