Manufacturer Part Number

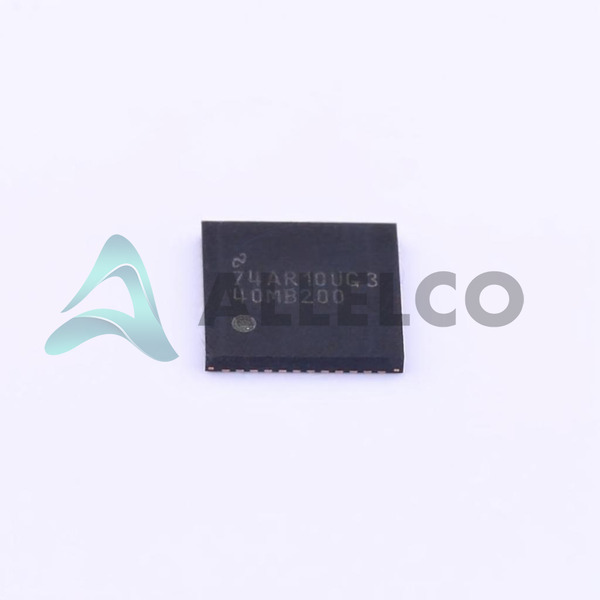

DS40MB200SQ
Manufacturer
Texas Instruments
Introduction
High-speed, low-power CML mux/demux and buffer for 10G/40G Ethernet, Fibre Channel, and InfiniBand applications
Product Features and Performance
2 channels of 1:2 demultiplexing or 2:1 multiplexing
4Gbps max data rate
500ps typical delay time
Input equalization and output pre-emphasis
Low power consumption
Wide operating temperature range of -40°C to 85°C
Product Advantages
Enables high-speed data transmission with low signal distortion
Compact 48-WQFN package for space-constrained designs
Robust performance across wide temperature range
Key Technical Parameters
Voltage supply: 3.135V to 3.465V
Input: CML
Output: CML
Package: 48-WQFN (7x7)
Quality and Safety Features
RoHS non-compliant
Compatibility
Suitable for 10G/40G Ethernet, Fibre Channel, and InfiniBand applications
Application Areas
High-speed data communication equipment
Networking and telecommunications infrastructure
Industrial automation and control systems
Product Lifecycle
Active product, no discontinuation plans identified
Replacement or upgrade options available from Texas Instruments
Several Key Reasons to Choose This Product
High-speed, low-power performance for demanding applications
Flexible 1:2 demux and 2:1 mux functionality
Robust design with wide temperature range support
Compact package for space-constrained designs
Compatibility with leading high-speed networking standards
