Manufacturer Part Number

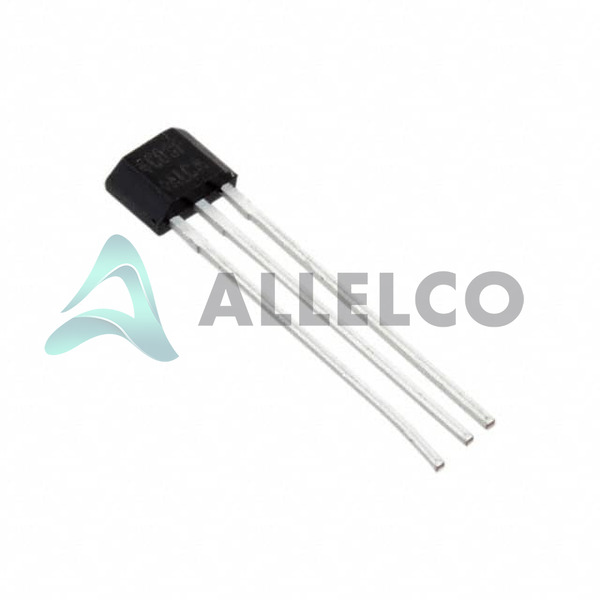

DRV5033AJQLPGMQ1
Manufacturer
Texas Instruments
Introduction
This is a Hall effect-based omnipolar magnetic sensor switch from Texas Instruments. It is designed for automotive and industrial applications.
Product Features and Performance
Temperature compensated for stable operation across -40°C to 125°C
Operates on a wide supply voltage range of 2.7V to 38V
Provides an open-drain output with a maximum current of 30mA
Senses both north and south poles with a ±12mT trip and ±1mT release sensing range
AEC-Q100 qualified for automotive applications
Product Advantages
Robust and reliable performance in harsh environments
Wide operating temperature range
Flexible supply voltage range
Omnipolar sensing for versatile magnetic field detection
Key Technical Parameters
Supply voltage: 2.7V to 38V
Operating temperature: -40°C to 125°C
Sensing range: ±12mT trip, ±1mT release
Output type: Open-drain
Maximum supply current: 2.7mA (typical)
Maximum output current: 30mA
Quality and Safety Features
RoHS3 compliant
AEC-Q100 qualified for automotive applications
Compatibility
This sensor is compatible with a wide range of industrial and automotive applications that require magnetic field sensing and switching.
Application Areas
Automotive systems (e.g., engine control, transmission, door/window position)
Industrial automation and control
White goods and home appliances
General purpose magnetic sensing and switching
Product Lifecycle
The DRV5033 is an active and widely used product in Texas Instruments' portfolio. There are no indications of it being discontinued or replaced in the near future.
Key Reasons to Choose This Product
Robust and reliable performance in harsh environments with temperature compensation and wide operating voltage range.
Versatile omnipolar sensing capability for detecting both north and south magnetic poles.
Automotive-grade qualification and RoHS3 compliance for use in demanding applications.
Flexible through-hole package options and easy integration into various systems.
Backed by Texas Instruments' extensive technical support and product lifecycle management.
